Product Description

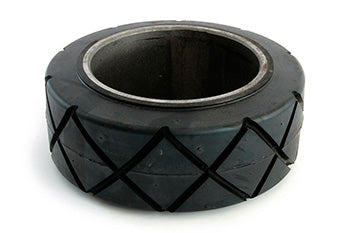

SU 10X5X6.5-SF-R-XGROOVE Rubber Xgroove Drive Tire, manufactured by Liftsplus.com, is a press-on, industrial solid rubber tire designed for electric lift truck applications. Features include a 10-inch outer diameter, 5-inch width, and 6.5-inch bore, with Xgroove tread for traction on smooth warehouse floors. Compatible with various OEM and universal part numbers, available in standard or non-marking rubber compounds.
Specifications: 10.000 inch diameter x 5.000 inch width (10.000" x 5.000" | 10 x 5.00 wheel | 10 x 5 | 254.00mm x 127.00mm)
Specifications
Material & Construction
| Tire Material | Industrial rubber compound |
Mechanical Specifications
| Load Capacity Class | Determined by forklift make/model; refer to OEM load rating |
Part Numbers
| Manufacturer Part Number | SU 10X5X6.5-SF-R-XGROOVE |
| OEM Part Number | SU10.5X5X6.5S |
| Cross-Reference Part Numbers | Equivalent to r01000500651, S100050065, 10x5x6.5, 10x5x6-1/2, 10.5X5X6.5S |
Wheel Specifications
| Outside Diameter (in) | 10.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 254.00 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Tread Style | X-Groove |
| Material | Rubber |
Frequently Asked Questions
Q: What advantage does the Xgroove tread pattern provide on SU 10X5X6.5-SF-R-XGROOVE?
A: The Xgroove tread features diagonal grooves machined into the rubber surface to improve traction on smooth, polished, or wet warehouse floors. Unlike smooth tread that can hydroplane on damp concrete or oil-slicked surfaces, the Xgroove pattern increases contact grip without marking the floor. This tread design is particularly beneficial in cold storage facilities where moisture condensation can create slippery surfaces. Xgroove tires maintain directional stability and steering control better than smooth press-on tires when floor conditions are less than ideal.
Q: Is SU 10X5X6.5-SF-R-XGROOVE compatible with my existing 10x5x6.5 tire hubs?
A: Yes, provided your hub bore is exactly 6.5 inches. This tire is cross-compatible with r01000500651, S100050065, and other 10x5x6.5 press-on tires. The bore size, OD, and width match standard 10x5x6.5 dimensions, so it can be installed on any hub previously fitted with a tire of the same size. Verify the hub bore with a caliper to confirm 6.5 inch dimension before ordering.
Q: How often does the Xgroove tread wear down, and how do I know when replacement is needed?
A: Xgroove tread typically lasts 1500 to 3000 operational hours depending on load and facility conditions. The grooves gradually shallow over time as rubber abrades against the floor. Inspect the tire monthly using a depth gauge or by running your fingernail across the grooves. When groove depth falls below 2/32 inch or grooves become barely visible to the naked eye, traction is significantly reduced and replacement is necessary. Also replace the tire if the grooves are partially filled with debris that cannot be cleaned out, as this reduces traction effectiveness.
Q: What is the maximum load capacity for SU 10X5X6.5-SF-R-XGROOVE?
A: The load capacity is determined by your forklift make and model and is typically 3000 to 3500 pounds per tire on a four-wheel electric lift truck. The Xgroove pattern does not increase or decrease load rating; it only improves traction. Consult your equipment manual for the maximum lift capacity at rated speed. Overloading accelerates all types of tire wear, including compression of the rubber and Xgroove pattern collapse.
Q: Can I clean the Xgroove tread pattern to restore traction if it becomes clogged?
A: Yes. If the grooves become packed with dirt, grime, or oils, use a stiff brush and warm soapy water to scrub the tread surface. A pressure washer on low setting can also clean out stubborn debris. Allow the tire to dry completely before operating the forklift. Regular cleaning maintains Xgroove effectiveness and extends tire life. However, cleaning does not restore groove depth if the rubber has naturally worn down. Once grooves are worn flat by abrasion, the tire must be replaced.
Q: Is SU 10X5X6.5-SF-R-XGROOVE suitable for freezer or outdoor applications?
A: SU 10X5X6.5-SF-R-XGROOVE is designed for standard indoor warehouse and cold storage facilities down to approximately minus 10 degrees Celsius. The rubber remains pliable and the Xgroove grooves function effectively in these conditions. Extended freezer operation below minus 20 degrees Celsius or outdoor use will harden the rubber and reduce traction benefit of the grooves. The tire is not rated for extreme cold or outdoor yard operations. For ultra-cold or outdoor applications, specify a specialized compound tire engineered for those environments.
