Product Description

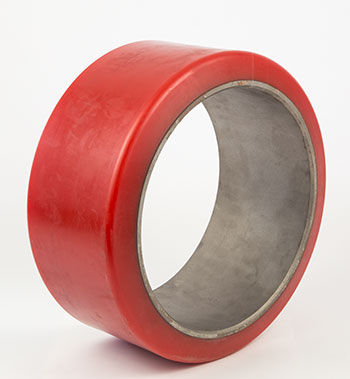

Superior SU 13.5 X 6 X 10.5 drive tire assembly for electric pallet jack applications. Solid resilient construction with flat tread standard design. Pre-assembled tire and hub configuration with 13.5 inch outer diameter, 6.0 inch width, and 10.5 inch hub mounting dimension. Designed specifically for Superior electric lift truck drive wheel applications.
Specifications: 135.000 inch diameter x 6.000 inch width (135.000" x 6.000" | 135 x 6 wheel | 3429.00mm x 152.40mm)
Specifications
Part Numbers & Compatibility
| Manufacturer Part Number | SU 13.5 X 6 X 10.5 |
| Alternative Part Number Format | SU135X6X105 |
Wheel Specifications
| Outside Diameter (in) | 135.000 |
| Width (in) | 6.000 |
| Outside Diameter (mm) | 3429.00 |
| Width (mm) | 152.40 |
Frequently Asked Questions
Q: What is the hub mounting dimension for the SU 135 X 6 X 105 and why does it matter?
A: The SU 135 X 6 X 105 has a 10.5 inch hub mounting dimension. This tire is pre-assembled with a hub that slides onto the axle shaft. The 10.5 inch measurement must match your truck axle bore. If your truck requires a 10 inch or 11 inch hub mount, this assembly will not fit. Always verify hub dimension before purchasing.
Q: Is the SU 135 X 6 X 105 plug-and-play on my electric pallet truck?
A: The SU 135 X 6 X 105 is a pre-assembled tire and hub unit, which means installation is faster than a press-on tire alone. However, you must still verify wheel bolt pattern, axle length, and hub bore match before installation. Installation typically requires removing the old wheel assembly and sliding the new one onto the axle shaft. If you are uncertain, contact the manufacturer with your truck model and serial number.
Q: What equipment does the SU 135 X 6 X 105 fit?
A: This tire assembly is designed for electric lift trucks and electric pallet jacks using 13.5 inch drive wheels with 6 inch width and 10.5 inch hub mount. It is not interchangeable with manual pallet jacks or trucks requiring press-on tires. Verify equipment compatibility by checking the existing wheel assembly.
Q: What is the difference between SU 135 X 6 X 105 and the press-on version SU 135 X 6 X 10-SF-P?
A: The SU 135 X 6 X 105 is a pre-assembled hub and tire unit with a 10.5 inch hub bore. The SU 135 X 6 X 10-SF-P is a press-on only tire with a 10 inch bore. The assembled version is faster to install if your truck has a 10.5 inch hub. The press-on version is cheaper but requires equipment to mount. Do not mix these parts. Verify your truck hub bore before selecting either version.
Q: How do I replace the SU 135 X 6 X 105 on my truck?
A: Remove the retaining bolt or cotter pin holding the wheel assembly on the axle. Slide the old assembly off the axle shaft. Clean the axle shaft of any debris or corrosion. Slide the new SU 135 X 6 X 105 assembly onto the axle and secure with the original bolt or pin. Ensure the wheel rotates freely without rubbing. Do not over-tighten the bolt as this can damage the hub.
