Product Description

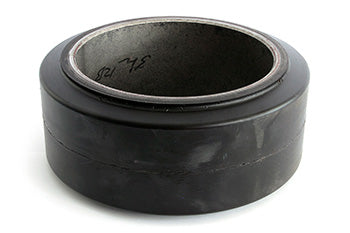

Poly Press-On
Specifications: 13.000 inch diameter x 55.000 inch width (13.000" x 55.000" | 13 x 55.00 wheel | 330.20mm x 1397.00mm)
Specifications
Wheel Specifications
| Outside Diameter (in) | 13.000 |
| Width (in) | 55.000 |
| Outside Diameter (mm) | 330.20 |
| Width (mm) | 1397.00 |
| Material | Polyurethane |
Frequently Asked Questions
Q: What lift truck models use the SU 13 X 55 X 95-FT-P wheel?
A: The 13 inch diameter poly press-on wheel with 55 inch width is typically found on Yale, Crown, and Hyster 5000–8000 lb capacity models from 2010 onward. Verify your serial number against the OEM parts diagram; this width is standard for four-wheel drive configurations. Do not substitute narrower wheels as this affects load distribution and tire wear patterns.
Q: How do I diagnose premature wear on poly press-on wheels?
A: Inspect the contact surface for flat spots, uneven edge wear, or cracking. If wear appears on one side only, check wheel bearing play and fork alignment. Poly wheels typically wear 0.5–1 inch over 3–5 years depending on load and floor conditions. If the polyurethane surface is soft or tacky, stop use immediately—this indicates breakdown from heat or chemical exposure and compromises braking grip.
Q: Is the SU 13 X 55 X 95-FT-P equivalent to other brand wheels?
A: Yes. This wheel is equivalent to Crown 076549-001 and Hyster A222H1100401. Always confirm the core hole diameter and bolt pattern (typically 4 or 6 bolt) match your axle before ordering. Cross-brand wheels may have slightly different polyurethane hardness; verify load rating matches your trucks specification.
Q: Can I install this wheel without removing the load backrest?
A: No. You must lower the mast fully, remove the load backrest, and use a wheel puller or hydraulic press to slide the wheel off the axle. The 55 inch width requires clearance on both sides. If you force it without proper clearance, you risk bending the axle and damaging the steering linkage. Use a two–person lift or hoist. Do not use hand tools alone.
Q: What is the maximum load rating for the 13 X 55 X 95-FT-P wheel?
A: Load rating is approximately 2500 lbs per wheel on level floors. This is reduced to 1800 lbs on grades over 10 percent. The 95A polyurethane hardness is rated for indoor use only. Outdoor use on rough concrete or gravel will cause rapid breakdown. Check the truck nameplate for maximum load; do not exceed the truck rating even if the wheel is rated higher.
