Product Description

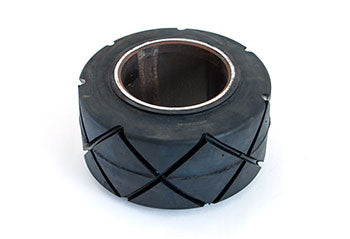

Xgroove rubber drive tire
Specifications: 9.000 inch diameter x 5.000 inch width (9.000" x 5.000" | 9 x 5.00 wheel | 9 x 5 | 228.60mm x 127.00mm)
Specifications
Wheel Specifications
| Outside Diameter (in) | 9.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 228.60 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Tread Style | X-Groove |
| Material | Rubber |
Frequently Asked Questions
Q: When should I choose x-groove tread over siped tread on rubber drive tires?
A: SU 9X5X5-SF-R-XGROOVE x-groove tread is the preferred choice for dry warehouse and manufacturing floors. X-groove tires deliver better rolling efficiency, longer tire life (typically 20 to 30 percent longer than siped), and superior performance on clean, dry concrete. Choose siped tires only for wet, oily, or slippery surfaces. If your facility is climate-controlled, dry, and does not encounter spilled fluids, x-groove is the standard recommendation.
Q: Is SU 9X5X5-SF-R-XGROOVE compatible with pallet jacks originally equipped with siped tires?
A: Yes, SU 9X5X5-SF-R-XGROOVE is a direct replacement for any 9x5x5 siped or x-groove tire. All three dimensions (9 inch diameter, 5 inch width, 5 inch bore) are identical across Superior, Yale, and equivalent brands. No modifications to the wheel hub, axle, or jack frame are required. If your jack was originally equipped with siped tires and your facility is now dry, switching to x-groove is a straightforward tire swap.
Q: What load capacity does SU 9X5X5-SF-R-XGROOVE provide, and how does it compare to siped?
A: SU 9X5X5-SF-R-XGROOVE is rated for approximately 2,700 to 2,900 lbs per tire at 6 mph. Load capacity is nearly identical to siped variants; the difference is tread pattern, not load rating. The main advantage of x-groove is longer lifespan and better rolling efficiency in dry conditions, not higher weight capacity. Always respect the pallet jack nameplate rating for total load, typically 5,000 to 6,000 lbs with two drive wheels.
Q: How long do x-groove rubber drive tires last compared to siped tires?
A: SU 9X5X5-SF-R-XGROOVE x-groove tires typically last 4,000 to 6,000 operating hours in normal dry warehouse service, approximately 20 to 30 percent longer than siped tires. Lifespan depends on floor condition, load percentage, and operating speed. Smooth, clean concrete extends tire life; rough or contaminated floors reduce it. Replace when tread grooves become shallow or when you observe uneven wear patterns. Monthly visual inspections catch premature wear early.
Q: Can I mount SU 9X5X5-SF-R-XGROOVE tires myself, or do I need a tire press?
A: SU 9X5X5-SF-R-XGROOVE is a tire-only product and requires a tire press or professional mounting service to mount onto your existing hub. If you need immediate installation without equipment access, order the assembly version SU 9X5X5-SF-R-XGROOVE-A instead, which arrives pre-mounted and ready to bolt on. Tire-only options are cost-effective for shops with in-house press equipment or established relationships with tire service providers.
