Product Description

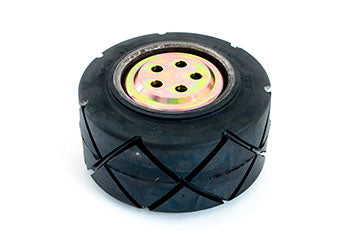

SU 9X5X5-SF-R-XGROOVE-A Drive Tire Assembly features a molded solid rubber X-Groove tread pre-mounted on a cast steel hub, engineered for direct replacement on Superior electric pallet jack drive wheel assemblies. Compatible with industry-standard 9x5x5 configurations; cross-references include r0090050050a and YL 550011238. Tire dimensions are 9" diameter × 5" width × 5" bore.
"Specifications: 9.000 inch diameter x 5.000 inch width (9.000" x 5.000" | 9 x 5.00 wheel | 9 x 5 | 228.60mm x 127.00mm)
Specifications
Material & Construction
| Tire Material | Molded industrial-grade solid rubber compound |
| Hub Material | Cast steel, finished for press-fit tolerances |
Part Numbers
| Manufacturer Part Number | SU 9X5X5-SF-R-XGROOVE-A |
| Cross-Reference Part Numbers | r0090050050a, YL 550011238, OE/OEM Part Number: r00900500501 |
| Equivalent Part Numbers | 9x5x5 PO Universal Rubber SF XG, SU 9X5X5-SF-R-XGROOVE |
Wheel Specifications
| Outside Diameter (in) | 9.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 228.60 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Tread Style | X-Groove |
| Material | Rubber |
Frequently Asked Questions
Q: What does the SU 9X5X5-SF-R-XGROOVE-A designation indicate?
A: SU 9X5X5-SF-R-XGROOVE-A breaks down as follows: 9 inch diameter, 5 inch width, 5 inch bore, SF means solid fill (non-pneumatic), R indicates rubber compound, XGROOVE is the tread pattern, and A denotes the assembly version with hub pre-mounted.
Q: What are the cross-reference part numbers for the SU 9X5X5-SF-R-XGROOVE-A?
A: The SU 9X5X5-SF-R-XGROOVE-A is equivalent to part numbers r0090050050a and YL 550011238. Always verify dimensions and bore size when ordering cross-reference parts to ensure compatibility with your equipment.
Q: How do I install the SU 9X5X5-SF-R-XGROOVE-A drive tire assembly?
A: The assembly comes pre-mounted on the cast steel hub. Unbolt the existing drive wheel, position the new assembly on the drive axle, align mounting holes, and secure with bolts and washers. Ensure the axle is clean and free of burrs before installation. Do not use impact tools that may crack the hub.
Q: What is the material composition of the SU 9X5X5-SF-R-XGROOVE-A tire?
A: The tire features a molded industrial-grade solid rubber compound with X-groove tread pattern. The hub is cast steel. This combination provides traction, durability, and resistance to oils and moisture common in warehouse and dock environments.
Q: What maintenance is required for the SU 9X5X5-SF-R-XGROOVE-A?
A: Inspect the X-groove tread for debris and excessive wear monthly. Clean oil and grease accumulation to maintain traction. Check fasteners quarterly for looseness due to vibration. Replace when tread grooves are less than 0.5 inches deep or if the tire shows cracks or chunks missing.
Q: Can the SU 9X5X5-SF-R-XGROOVE-A tire be removed and replaced separately from the hub?
A: No, the SU 9X5X5-SF-R-XGROOVE-A is a permanently molded assembly. The tire and hub cannot be separated. When the tire is worn, replace the entire assembly to maintain safety and performance specifications.
