Product Description

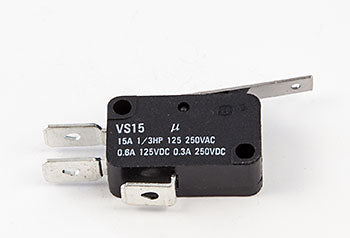

Clark CL 7004131 is an OEM micro switch engineered for use in electric lift truck control handle assemblies. It integrates with the 24VDC system to handle directional, braking, horn, and emergency reversing functions. The industrial-grade contact design ensures long-term durability and consistent operation in Clark electric forklifts.
Specifications
Dimensional Specifications
| Mounting | Panel mounting via integrated threaded holes (location: control handle assembly) |
| Connection Type | Spade terminals for 24VDC low-voltage connections |
Electrical
| Control Voltage | 24VDC system integrated in drive circuit |
Material & Construction
| Housing Specification | Industrial-grade molded polymer for insulation and durability |
Part Numbers
| OEM Part Number | CL 7004131 |
| Manufacturer | Clark Material Handling Company |
Frequently Asked Questions
Q: What is the CL 7004131 micro switch used for in Clark electric lift trucks?
A: The CL 7004131 is an OEM micro switch engineered for integration into control handle assemblies on Clark electric lift trucks. It manages directional, braking, horn, and emergency reversing functions within the 24VDC control circuit, providing precision switching for operator input.
Q: Which Clark electric lift truck models are compatible with the CL 7004131?
A: The CL 7004131 is compatible with Clark electric forklift models equipped with integrated control handle systems operating on 24VDC. Reference your truck model nameplate and serial number to confirm compatibility. This is a direct OEM replacement part for Clark equipment.
Q: What is the electrical specification and operating voltage for the CL 7004131?
A: The CL 7004131 is rated for 24VDC operation and integrates into the trucks main drive circuit. Verify your truck voltage specification before ordering to ensure correct electrical compatibility and safe operation.
Q: What materials and construction does the CL 7004131 use?
A: The CL 7004131 features industrial-grade molded polymer housing for electrical insulation and durability in warehouse and material handling environments. The contact design is engineered for high-cycle switching and long-term reliability under continuous use.
Q: How is the CL 7004131 mounted to the control handle assembly?
A: The CL 7004131 uses panel mounting via integrated threaded holes. It is installed on the control handle bracket to sense operator input and trigger the corresponding electrical response. Verify mounting location and hole spacing against your original assembly.
Q: What are the failure symptoms that indicate the CL 7004131 needs replacement?
A: Replace the CL 7004131 if directional control fails to respond, braking becomes intermittent, horn function stops working, or the truck does not respond consistently to operator input on the control handle. Early detection of micro switch failure prevents loss of vehicle control.
