Product Description

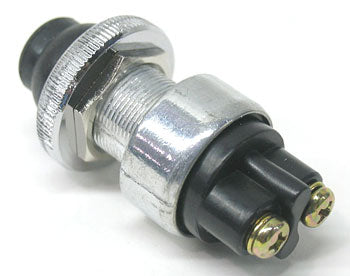

Allis Chalmers AC 253322 push button switch is an OEM-grade, heavy-duty momentary switch for electric lift truck control circuits, designed with two screw terminals, rated for up to 35VDC, and compatible with a wide range of Allis Chalmers tractor and forklift models. Features include durable metallic housing, rubber dust cap, and standard 5/8-32 UNEF mounting stem.
Specifications
Compatibility
| Compatible Models | Allis Chalmers WD45 Diesel, D15, D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000 (sn 4095 and up), 7010, 7020, 7030, 7040, 7045, 7050, 7060 (except PD and PS tractors), 7080, 7580, 8550 |
Dimensional
| Mounting Hole Requirement | Requires 0.625 inch (5/8 inch) panel hole |
Electrical
| Terminal Type | 2 screw terminals |
| Operating Voltage Rating | Up to 35VDC |
Material & Construction
| Body Material | Industrial grade metallic housing |
Part Numbers
| OEM Part Number | 253322 |
| Supersedes Part Numbers | Supersedes 245866, 245936 |
| Accessory Cap | Compatible with cap part number 253321 |
Frequently Asked Questions
Q: What are the mounting specifications for the AC 253322 switch?
A: The AC 253322 features a standard 5/8-32 UNEF mounting stem with a rubber dust cap. The switch body is housed in durable metallic construction. These specs ensure secure panel mounting and environmental protection in lift truck cabins.
Q: Which Allis Chalmers tractor models are compatible with the AC 253322?
A: The AC 253322 is compatible with WD45 Diesel, D15, D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000 (sn 4095 and up), 7010, 7020, 7030, 7040, 7045, 7050, 7060 (except PD and PS tractors), 7080, and 7580 models. Verify your serial number falls within the specified range.
Q: What terminals does the AC 253322 use for electrical connection?
A: The AC 253322 is equipped with two screw terminals for direct electrical connection to control circuits. This design allows for secure wiring and straightforward circuit integration in lift truck systems.
Q: Does the AC 253322 replace earlier part numbers?
A: Yes. The AC 253322 supersedes parts 245866 and 245936. If your equipment currently uses either of those part numbers, the AC 253322 is a direct OEM-grade replacement.
Q: What is the voltage rating for the AC 253322?
A: The AC 253322 is rated for up to 35VDC, making it suitable for both 12V and 24V electric lift truck and tractor control circuits.
