Product Description

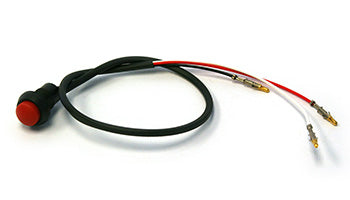

Raymond RA 1020056 is a push button horn switch designed for secondary horn function in electric lift truck operator control panels. Compatible with Raymond Model 7400, 7500, and 7520 reach-fork trucks. Features momentary SPST contact arrangement, solder lug terminals, and ABS actuator. Rated 10A at 24VDC for intermittent operation.
Specifications
Electrical
| Contact Rating | Rated 10A at 24VDC |
| Control Voltage | 24VDC nominal |
| Enclosure Rating | Unsealed, for interior operator control panel use |
Material
| Button Material | Acrylonitrile butadiene styrene (ABS) plastic |
Part Numbers
| OEM Part Number | RA 1020056 |
| Manufacturer Part Number | RA 1020056 |
| Application | Compatible with Raymond Reach-Fork Truck Model 7400, 7500, 7520 |
Performance
| Duty Cycle | Intermittent operation, rated for 120 cycles/hour |
Frequently Asked Questions
Q: What is the function of the RA 1020056 push button switch?
A: The RA 1020056 is a push button horn switch designed for secondary horn function in Raymond electric lift truck operator control panels. It provides momentary contact to trigger the audible alarm or secondary warning device.
Q: Which Raymond reach-fork truck models is the RA 1020056 compatible with?
A: The RA 1020056 is compatible with Raymond Model 7400, 7500, and 7520 reach-fork trucks. Verify your specific equipment model and control panel layout before ordering to ensure proper panel-mount fitment.
Q: What are the electrical specifications of the RA 1020056?
A: The RA 1020056 is rated 10A at 24VDC for intermittent operation. It features a momentary SPST (single pole, single throw) contact arrangement with solder lug terminals suitable for direct panel-mount installation in operator control panels.
Q: What is the RA 1020056 button material and how does it perform?
A: The RA 1020056 uses an ABS plastic actuator designed for durability in industrial operator control panels. ABS provides impact resistance and maintains tactile feedback through thousands of actuation cycles typical of material handling equipment operation.
Q: Is the RA 1020056 sealed against moisture and dirt?
A: The RA 1020056 has an unsealed design intended for interior operator control panel use only. It is not rated for external mounting or wet environments. Ensure the control panel housing protects the switch from moisture, dirt, and mechanical damage.
