Product Description

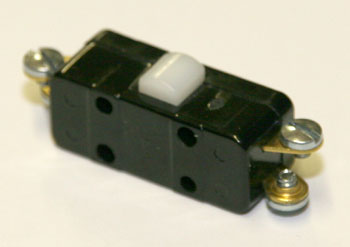

The Raymond RA 1150-322 is a panel-mounted momentary pushbutton switch engineered for handle assemblies in Raymond Model 101 Walkie Electric Lift Trucks. This direct replacement switch delivers reliable on/off control with a 15A capacity at 24VDC, featuring SPDT contact arrangement for dual lift and lower functions. Constructed from high-impact thermoplastic housing and steel actuator, this switch is built to withstand the demands of fast-paced warehouse and dock operations. Compatible with Raymond Model 101 trucks (serial range 3000–7499), it ensures consistent electrical performance in electric pallet jack applications.
Specifications
Electrical Specifications
| Voltage Rating | 24VDC |
| Maximum Current Capacity | 15A |
| Contact Configuration | SPDT (Single Pole, Double Throw) |
Dimensional Specifications
| Panel Thickness Range | Accepts panels up to 0.187 inch |
Material & Construction
| Housing Material | High-impact thermoplastic |
| Actuator Material | Steel pushbutton |
Compatibility & Application
| Equipment Compatible | Raymond Model 101 Walkie Electric Lift Trucks |
| Serial Number Range | 3000 to 7499 |
| Part Number | RA 1150-322 |
| Application | Panel-mounted momentary pushbutton in handle assemblies |
Frequently Asked Questions
Q: What is the RA 1150-322 switch designed for?
A: RA 1150-322 is a panel-mounted momentary pushbutton switch for handle assemblies in Raymond Model 101 Walkie Electric Lift Trucks (serial range 3000 to 7499). The SPDT contact arrangement provides dual switching functions for lift and lower control. Rated for 15A at 24VDC.
Q: What are the electrical specifications for this switch?
A: RA 1150-322 is rated 15A maximum at 24VDC with SPDT (single pole, double throw) contact configuration. This voltage and amperage rating matches Raymond Model 101 control circuits. Do not exceed these ratings as overload causes contact failure and loss of lift control.
Q: What materials and construction does this switch use?
A: The switch housing is high-impact thermoplastic with a steel actuator button. Thermoplastic resists cracking from repeated button press cycles and impact. Steel actuator provides durability in industrial warehouse environments. This material combination balances electrical safety and mechanical longevity.
Q: Does RA 1150-322 work with Raymond Model 101 trucks in all serial number ranges?
A: This switch is specified for Raymond Model 101 serial numbers 3000 to 7499 only. Earlier or later serial numbers may use different switch designs. Verify your truck serial number before ordering to ensure correct fit and electrical compatibility.
Q: What are the failure symptoms of this switch?
A: Failure symptoms include no lift response when button is pressed, intermittent lift function, or inability to lower the load. Stuck or sluggish button response also indicates switch wear. Replace immediately as loss of lift control creates safety hazards in the warehouse.
