Product Description

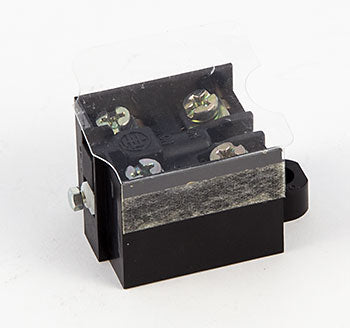

The SW-1348 is an electric lift truck switch, compatible with select OEM and Toyota models, featuring 2A resistive current capacity, silver/gold contacts, thermoset housing, and cross-referenced to TY00591-32290-81, TY00591-60556-81, and YT220015021.
Specifications
Electrical
| Electrical Rating | 2A resistive at 28VDC or 115VAC 60Hz |
| Inductive Current Rating | 0.5A at 28VDC (sea level) |
| Low Level Switching Capability | 30mV maximum, 10mA maximum |
| Contacts Material | Silver/Gold |
| Housing Material | Thermoset |
Part Numbers
| Cross-Reference Part Numbers | TY00591-32290-81, TY00591-60556-81, YT220015021 |
| Direct Replacement Part Number | SW-1348 |
Frequently Asked Questions
Q: What is the SW-1348 electric lift truck switch rated for?
A: The SW-1348 is rated for 2A resistive current at 28VDC or 115VAC 60Hz. It also provides low-level switching capability (30mV maximum, 10mA maximum), making it suitable for sensitive signal and logic circuits in addition to power control applications.
Q: What are the electrical specifications for inductive loads on the SW-1348?
A: The SW-1348 can handle 0.5A inductive current at 28VDC at sea level. For higher-altitude operations or different voltage environments, contact us with your specific requirements. The inductive rating is significantly lower than resistive rating due to the inductive characteristics of solenoids and motor windings.
Q: Which lift truck models and brands does the SW-1348 fit?
A: The SW-1348 is compatible with select Toyota and original equipment compatible lift truck models. Cross-reference part numbers include TY00591-32290-81, TY00591-60556-81, and YT220015021. Verify these numbers match your current part number before ordering to ensure compatibility.
Q: What materials and contacts are used in the SW-1348?
A: The SW-1348 features thermoset housing for durability and thermal stability. Contacts are silver and gold plated, which provide excellent low-level switching capability, low contact resistance, and resistance to corrosion. This construction is ideal for sensitive signal circuits.
Q: When should the SW-1348 be replaced?
A: Replace the SW-1348 if it fails to activate when commanded, provides intermittent connection, shows visible damage to the thermoset housing, or if contact corrosion is visible. In normal electric lift truck service with frequent switching, expect a service life of 3 to 6 years.
