Product Description

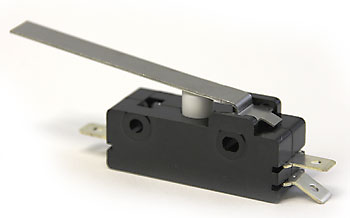

Brake / lift cutout switch for Toyota electric lift trucks. OEM part number 00590-00614-71. Panel mount, normally open circuit, rated 24VDC. Application: brake and lift function cutoff. Mechanical dimensions: 5 in length, 2.5 in width. High-impact polymer housing, silver alloy contacts. Spade terminals, panel mount style.
Specifications
Electrical
| Rated Voltage | 24VDC nominal operating voltage |
Material
| Housing Material | High-impact polymer enclosure |
Part Numbers
| OEM Part Number | 00590-00614-71 |
Frequently Asked Questions
Q: What is the voltage rating for the TO 00590-00614-71 brake/lift cutout switch?
A: The TO 00590-00614-71 is rated for 24VDC nominal operating voltage. This OEM switch is designed for Toyota electric lift trucks with 24-volt electrical systems. Do not use on 12VDC or other voltage systems.
Q: What is the circuit configuration and function of this switch?
A: The TO 00590-00614-71 is a normally open circuit switch that cuts brake and lift function when activated. This safety-critical switch prevents simultaneous brake and lift operation, protecting against operator error and equipment damage.
Q: What are the physical dimensions and mounting style of this switch?
A: The TO 00590-00614-71 measures 5 inches in length and 2.5 inches in width. It is designed for panel mount installation using spade terminals, allowing secure fastening into standard control panel cutouts on Toyota electric lift trucks.
Q: What materials are used in the housing and contacts?
A: The TO 00590-00614-71 features a high-impact polymer housing for durability and environmental resistance, with silver alloy contacts for reliable electrical conductivity and corrosion resistance in warehouse conditions.
Q: What is the terminal type on this switch?
A: The TO 00590-00614-71 uses spade terminals for quick disconnect compatibility with standard control panel wiring. This terminal type provides secure connections and simplifies troubleshooting and replacement.
