Product Description

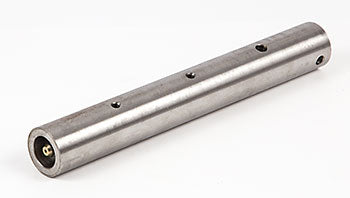

The Raymond RA 850-135-364-3 is a direct replacement three-hole axle engineered for load wheel support in electric pallet truck undercarriages. This factory-spec axle delivers the durability and precision fit required for reliable pallet jack operation on Raymond 111–114, 8300, 8400, and 8500 series equipment. Built from high-strength alloy steel, it provides the strength needed for heavy-duty warehouse and industrial applications.
Specifications
Material & Construction
| Material Specification | High-strength alloy steel axle |
| Mounting Design | Three-hole mounting design |
Compatibility
| Compatible Equipment | Raymond 111, 112, 113, 114, 8300, 8400, and 8500 Series Electric Pallet Trucks |
Part Numbers
| Part Number | RA 850-135-364-3 |
| Manufacturer Part Number | RA 850-135-364-3 |
| Cross-Reference Part Numbers | RA850-135-364-3, RA8501353643, 8501353643 |
Frequently Asked Questions
Q: Which Raymond truck models does the RA 850-135-364-3 three hole axle fit?
A: The RA 850-135-364-3 is designed for Raymond 111, 112, 113, 114, 8300, 8400, and 8500 Series Electric Pallet Trucks. Verify your equipment model and serial range match one of these series before ordering.
Q: What does the three-hole mounting design mean?
A: The three-hole design refers to three mounting holes in the axle that secure it to the truck undercarriage or load wheel assembly. This design ensures rigid, stable mounting of the load wheel support structure.
Q: What material is the RA 850-135-364-3 made from?
A: The RA 850-135-364-3 is manufactured from high-strength alloy steel, engineered to support heavy loads and resist bending or flexing during electric pallet truck operation.
Q: Are there cross-reference or equivalent part numbers for the RA 850-135-364-3?
A: The RA 850-135-364-3 cross-references RA850-135-364-3, RA8501353643, and 8501353643. These are equivalent representations of the same OEM part number. Use any of these references when searching for this axle.
Q: What symptoms indicate the RA 850-135-364-3 axle is damaged?
A: Replace the axle if you observe visible bending, cracks in the alloy steel, loose or wobbly load wheel assembly, uneven wheel contact with the floor, or grinding or roughness during operation.
Q: Does the three-hole design work with other Raymond models outside the 111-114 and 8300-8500 series?
A: The RA 850-135-364-3 is engineered specifically for the 111, 112, 113, 114, 8300, 8400, and 8500 Series. Do not use on other Raymond models or competing brands without confirming dimensional and mounting compatibility.
