Product Description

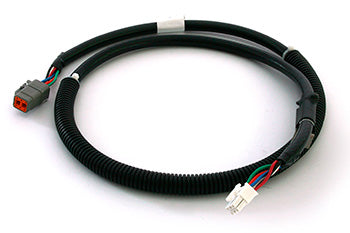

Crown CR 148520 Tiller Harness – A multi-conductor electrical harness assembly designed for Crown WP3000 series electric pallet trucks. This direct replacement harness routes control signals and power from the tiller handle to the truck controller, featuring industrial-grade copper wiring, high-flex PVC insulation, and factory-terminated connectors. Engineered for durability in high-motion areas, this harness ensures reliable operator control and truck responsiveness in warehouse and distribution environments.
Specifications
Dimensional
| Mounting End Termination | Pre-terminated connectors compatible with WP3000 receptacles |
Electrical
| Voltage Rating | Rated for use with 24VDC electrical systems |
| Insulation Type | High-flex PVC insulation, machine-grade |
| Connector Configuration | Mating connectors for tiller handle and controller specific to Crown WP3000 |
| Cable Type | Industrial-grade copper wiring |
| Termination Type | Factory-terminated multi-pin connectors |
Part Numbers
| Part Number | CR 148520 |
| Manufacturer Part Number | 148520 |
| Product/Application | Tiller Harness Assembly for WP3000 Series |
| Compatible Equipment Models | Crown WP3000 electric pallet truck |
Frequently Asked Questions
Q: What is the CR 148520 tiller harness and what does it connect?
A: The CR 148520 is an OEM multi-conductor electrical harness for Crown WP3000 series electric pallet trucks. It is a flexible cable assembly that routes electrical signals and power from the tiller handle (steering and control levers) to the main truck controller. Without a functioning tiller harness, the operator cannot communicate control commands to the truck.
Q: What voltage does the CR 148520 operate at?
A: The CR 148520 is rated for 24VDC (24 volts direct current) electrical systems, which is standard for Crown electric pallet trucks. The harness is engineered to safely carry low-voltage control signals and power between the tiller and the main battery and controller assembly.
Q: What material is the CR 148520 insulation and why is it important?
A: The CR 148520 uses high-flex PVC insulation with machine-rated copper wiring. High-flex insulation allows the cable to bend and flex at the tiller connection point without cracking, which extends its lifespan in this high-motion area. Machine-rated insulation means the cable is durable enough for industrial vibration and repeated flexing. If insulation becomes damaged or exposed, the harness must be replaced to prevent electrical shorts.
Q: Does the CR 148520 have any cross-reference or superseded part numbers?
A: No. Crown has not published a superseded or cross-reference part number for the CR 148520. This is the current OEM part number for the WP3000 tiller harness. If you are retrofitting or replacing a harness on an older truck, always verify the connector style and pin count match before ordering.
Q: What is the typical lifespan of the CR 148520 before it fails?
A: Most tiller harnesses last 4-6 years under normal warehouse duty. Failure typically occurs due to repeated flexing at the connector points, moisture intrusion, or impact damage to the cable. Frequent use in wet or cold storage environments or in trucks operated 24/7 may reduce lifespan. If the harness fails intermittently (causing erratic control or no response), the connector pins may be corroded or loose; this often signals imminent harness failure.
Q: Will the CR 148520 fit any other Crown models besides WP3000?
A: No. The CR 148520 is engineered specifically for the WP3000 series electric pallet truck. Other Crown models like WP 2000, PE 4500, or other series use different tiller assemblies and connector types. Do not attempt to adapt this harness to other equipment; connector mismatch will prevent proper operation or damage the truck controller.
