Product Description

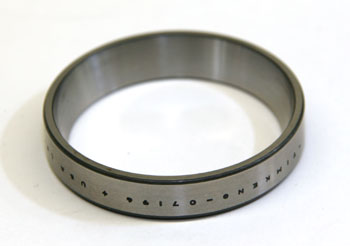

TK07196 cup, bearing is a stamped steel tapered roller bearing cup (outer ring) used in electric lift truck assemblies. It is compatible with 07097 cone, features an outside diameter of 1.9687 inches and a width of 0.5614 inches, and carries dynamic radial and thrust ratings suitable for high load environments.
Specifications
Mechanical Specifications
| Dynamic Radial Rating (C90, 90M revs) | 1,700 lbf (7,550 N) |
| Dynamic Radial Rating (C1, 1M revs) | 6,540 lbf (29,100 N) |
| Dynamic Thrust Rating (Ca90, 90M revs) | 1,170 lbf (5,190 N) |
Part Numbers & Compatibility
| Manufacturer Part Number | 07196 |
| Cross-Reference Part Numbers | Timken 07196, AMPEC 07196, NTN 4T-07196 |
| Supersedes/Replaces | 4T-07196 |
| Compatible Cone Assembly | To be used with 07097 cone (inner ring assembly) |
Frequently Asked Questions
Q: What is a tapered roller bearing cup and how does it differ from the cone assembly?
A: A tapered roller bearing cup is the outer ring component of a tapered roller bearing set. The TK07196 cup measures 1.9687 inches in outside diameter and 0.5614 inches in width. It works with the TK07097 cone (inner ring) to create a complete bearing assembly that supports radial and thrust loads in electric lift truck wheel and load wheel positions. The cup remains stationary while the cone rotates with the shaft.
Q: What is the dynamic radial load rating for the TK07196 bearing cup?
A: The TK07196 cup is rated for a dynamic radial load of 1,700 lbf (7,550 N) at 90 million revolutions (c90, 90m revs). This rating indicates the maximum radial load the bearing can support continuously at typical operating speeds in electric lift truck assemblies. Exceeding these ratings will accelerate bearing wear and failure.
Q: Which bearing cone assembly is compatible with the TK07196 cup?
A: The TK07196 cup must be paired with the TK07097 cone (inner ring assembly) to create a complete tapered roller bearing set. These components are designed as a matched pair and cannot be mixed with other bearing sizes. Verify both the cup and cone part numbers when ordering replacement bearing sets.
Q: What cross-reference part numbers are equivalent to the TK07196 cup?
A: The TK07196 cup is equivalent to Timken 07196, AMPEC 07196, and NTN 4T-07196. These manufacturers produce bearing cups to identical specifications and tolerances. You can substitute any of these equivalent part numbers if they are available and your equipment documentation permits cross-brand replacement.
Q: Can the TK07196 bearing cup be used in manual pallet jack assemblies?
A: The TK07196 bearing cup is designed specifically for electric lift truck assemblies where radial and thrust loads are higher than typical manual pallet jack applications. Check your equipment documentation to confirm bearing compatibility before ordering. Using incorrect bearing types can result in premature failure and safety issues.
