Product Description

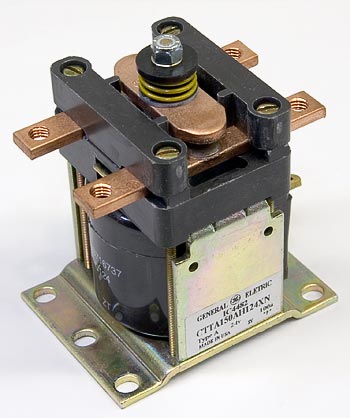

CONTACTOR 150A, 24V
Frequently Asked Questions
Q: What is the current rating of the 00591-30732-81?
A: This unit is rated for 150 amperes continuous duty at 24VDC. This rating means the contactor can safely handle 150 amps of steady-state current without exceeding thermal limits. Peak inrush current during motor startup can temporarily exceed this, but the contactor is designed to withstand normal cycling.
Q: Can I use this 150A contactor in place of a 15A or 300A contactor?
A: No. The amperage rating is not interchangeable. Using an undersized contactor (lower amp rating) will cause overheating and early failure. Using an oversized contactor may not provide adequate control precision for smaller circuits. Always match the contactor to the circuit it controls. Verify the current draw of your specific lift truck model before ordering.
Q: What is the coil voltage for this unit?
A: This unit operates on a 24VDC control coil. The control circuit voltage must remain between approximately 20VDC and 28VDC for reliable operation. Low battery voltage or faulty charging systems can prevent the contactor from engaging properly.
Q: Is this a normally open or normally closed contactor?
A: This is a single-pole normally open (NO) contactor. This means the contacts are open (no current flow) when the coil is de-energized, and they close only when 24VDC is applied to the coil. This configuration is standard for control circuits in lift truck motor circuits.
Q: What mounting method does this contactor use?
A: This unit uses panel-mount construction with threaded stud terminals for electrical connections. The contactor mounts directly to the interior wall of the control enclosure or operator panel. Ensure all electrical connections are tight to prevent arcing or heat generation.
Q: Which Toyota lift truck models use this contactor?
A: This is used in Toyota electric pallet jacks, walkie stackers, and sit-down rider lift trucks with 24VDC control systems. Cross-reference your specific model number and serial range to confirm compatibility. If you are uncertain whether your equipment uses this part, provide your truck model and we can verify.
