Battery Charger for Toyota Electric Lift Trucks
TO 00590-43337-71
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

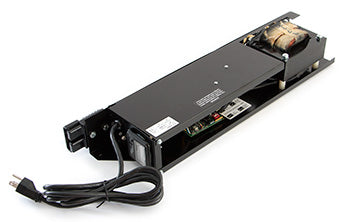

TO 00590-43337-71 Battery Charger for Toyota electric pallet trucks: 24VDC output, designed for model 7HBW23, supports wet, AGM, and GEL lead acid batteries, metal cast enclosure, SB175 connector, input 120VAC, compatible with select Raymond and Toyota charger part numbers.
Compatibility: Fits pallet jacks made by Toyota, model 7HBW23. SKU: TO 00590-43337-71
Specifications
Part Numbers & Compatibility
| Make | Toyota, Raymond |
| Model | 7HBW23, 8HBW23 |
| Battery Type Compatibility | Wet, AGM, and GEL lead-acid batteries |
| Part Number | 00590-43337-71 |
| Cross-Reference Part Numbers | TO005904333771, 005904333771 |
| Equivalent Part Numbers | RA2415, RA313799-001, RA850-138-139-02, RA939-353/284, RA939-353-286, RA939-352-207, ET241516B1 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 15 A |
| Charge Profile | wet, AGM, gel |
| Connector Type | SB175 |
| Battery Chemistry | lead-acid |
| Charger Voltage Output | 24 VDC nominal |
| Output Voltage (Charging) | 28 VDC |
| Max AC Current | 6 A |
| Output Voltage (Float) | 27 VDC |
| Max DC Current Output | 15 A |
Additional Specifications
| Output Banks | 1 bank |
| Enclosure Material | Metal cast enclosure |
Frequently Asked Questions
Q: What is the output voltage of the TO 00590-43337-71 battery charger?
A: The TO 00590-43337-71 outputs 24VDC, designed for electric lift truck battery systems. Input is 120VAC.
Q: What battery types does this charger support?
A: The TO 00590-43337-71 is compatible with wet, AGM, and GEL lead-acid batteries, providing flexibility for different battery chemistries used in electric lift trucks.
Q: What connector does this charger use?
A: This charger features an SB175 connector for battery connection. The metal cast enclosure provides durability in material handling environments.
Q: Which makes and models is this charger compatible with?
A: The TO 00590-43337-71 is compatible with Toyota models 7HBW23, 8HBW23. It is also compatible with select Raymond models.
Q: What are the cross-reference part numbers for this charger?
A: Equivalent part numbers include RA2415, RA313799-001, RA850-138-139-02, RA939-353/284, RA939-353-286, and RA939-352-207, covering both Toyota and select Raymond compatible charger specifications.
Q: Is this charger compatible with Raymond pallet jacks?
A: Yes. The cross-reference part numbers indicate compatibility with select Raymond charger applications. Verify the equivalent part number matches your Raymond model before ordering.
Q: How do I know if this charger is the right replacement for my equipment?
A: Check the compatibility with your specific model and verify the connector type. The TO 00590-43337-71 is designed for use with lead-acid batteries and uses an SB175 connector.
