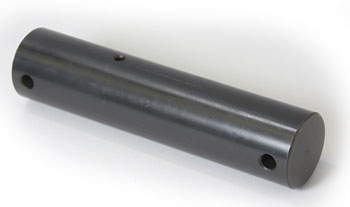

Raymond wheel axle sae 1045 carbon steel
RA 623-010-297
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond RA 623-010-297 is an OEM wheel axle designed for steer assemblies in electric pallet trucks, constructed from SAE 1045 carbon steel with a 1 inch nominal diameter. This axle supports roller bearings and is compatible with specific Raymond models identified by serial number range. Cross-references include superseded part number 370224 and OEM reference JU, with compatibility assured for steer wheel installations. Machined finish ensures precise bearing fit and operational durability.
Specifications
Material & Construction
| Material | SAE 1045 carbon steel |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 5400, 5500, 5600 |
| Part Number | RA 623-010-297 |
| Manufacturer Part Number | 623-010-297 |
| Cross-Reference Part Numbers | Supersedes 370224; Reference JU (OEM); No additional cross-reference numbers available |
| Cross Reference Part Numbers | Supersedes 370224; Reference JU (OEM); No additional cross-reference numbers available |
| Compatibility | Compatible with specific Raymond models identified by serial number range |
| Application | Designed for steer assemblies in electric pallet trucks |
Wheel Dimensions
| Diameter | 1 inch nominal |
Additional Specifications
| Surface Finish | Machined finish per OEM axle specifications |
| Bearing Support | Supports roller bearings |
| Installation | Assured for steer wheel installations |
Frequently Asked Questions
Q: What models is the RA 623-010-297 compatible with?
A: The RA 623-010-297 is compatible with Raymond models 5400, 5500, and 5600. Verify the equipment serial number against Raymond specification documentation to confirm compatibility.
Q: What material is the RA 623-010-297 made from?
A: The RA 623-010-297 is constructed from sae 1045 carbon steel, which provides strong tensile strength and fatigue resistance for repeated use in steer wheel assemblies.
Q: How do I find replacement parts for the RA 623-010-297?
A: This part supersedes older part number 370224. Cross-reference with the reference designation ju when searching for equivalent stock or documentation.
Q: What is the purpose of the machined finish on this part?
A: The machined finish ensures tight, precise tolerances for the roller bearing fit. This maintains accurate wheel alignment and reduces play in the steer system, which is critical for vehicle tracking and handling.
Q: Is the RA 623-010-297 designed for steer or drive wheels?
A: The RA 623-010-297 is specifically designed for steer wheel assemblies. It is not intended for use in drive wheels.
