Product Description

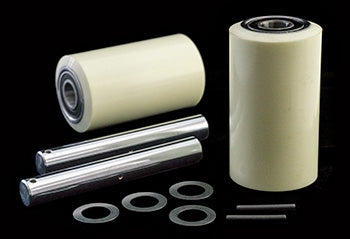

This load wheel kit includes two durable 97A polyurethane wheel assemblies, complete with axles, bearings, and fasteners, allowing for easy replacement of old or damaged wheels. The wheels, designed for optimal functionality, feature a durometer rating of 97A, striking a balance between hardness and flexibility, making them suitable for various applications while ensuring low marking and quiet operation.
Compatibility: Fits pallet jacks made by Toyota, model 7HBE30. SKU: GWK-7HBE30-LW-XL
Specifications
Material
| Polyurethane Hardness | 97A Shore durometer |
| Bearing Material | Chrome steel (SAE 52100) with sealed design |
Part Numbers
| Manufacturer Part Number | GWK-7HBE30-LW-XL |
| OEM Part Number | 7HBE30-LW |
| Compatible Models | Toyota 7HBE30 electric pallet jack |
Performance
| Duty Cycle Rating | Continuous use, suitable for high-cycle warehouse applications |
Frequently Asked Questions
Q: What is the difference between GWK-7HBE30-LW and GWK-7HBE30-LW-XL, and which one do I need?
A: The difference is wheel hardness: GWK-7HBE30-LW uses 95A durometer wheels for floor protection, while GWK-7HBE30-LW-XL uses 97A durometer wheels for maximum wear resistance. The XL designation indicates the stiffer 97A compound. Both fit Toyota 7HBE30 models. Choose XL if your jack operates on rough floors, metal debris areas, or cold storage. Choose the standard LW if protecting retail or polished floors is a priority.
Q: Is GWK-7HBE30-LW-XL compatible with my Toyota 7HBE30, and are the OEM part numbers correct?
A: Yes, GWK-7HBE30-LW-XL is engineered for Toyota 7HBE30 electric pallet jacks. The manufacturer part number is GWK-7HBE30-LW-XL; the OEM part number is listed as 7HBE30-LW. Always verify your jack model number on the nameplate before installation. This kit does not fit 7HBC30, 7HBW23, or other Toyota models. Axle length and bearing housing design are unique to the 7HBE30 platform.
Q: What are the wheel specifications, and why does the 97A hardness matter?
A: GWK-7HBE30-LW-XL wheels are 97A Shore durometer polyurethane on machined steel hubs. The 97A rating means these wheels are significantly harder than 95A wheels, resisting deformation under load and lasting 20-30 percent longer on rough or debris-filled floors. The trade-off is slightly more floor marking on polished surfaces. Bearing material is chrome steel (SAE 52100) with sealed design, rated for continuous duty and high-cycle warehouse operations.
Q: Does the kit come fully assembled, and what installation steps are required?
A: Yes, GWK-7HBE30-LW-XL ships with two complete wheel assemblies, axles, sealed bearings, and fasteners. Installation: remove the old axle by pushing it out of the fork carriage, align the new assembly, slide the axle through, and secure fasteners with a socket wrench. Torque fasteners to 35-40 foot-pounds. Test wheel rotation by hand to ensure smooth operation. Installation takes 15-20 minutes total. Do not apply additional grease to sealed bearings.
Q: What is the bearing specification, and how long do sealed bearings last?
A: Bearings are chrome steel (SAE 52100) with sealed design, preventing dust and water ingress. Under continuous warehouse use, sealed bearings last 18-24 months. Life extends to 24-30 months in light-duty environments. Cold storage, humidity, and metal shavings reduce bearing life. Signs of bearing failure include grinding noise, resistance to hand rotation, or visible wear on the outer race. Once bearings fail, replace the entire wheel assembly; individual bearing replacement is not economical.
Q: Are there any OEM cross-references or part numbers I should verify before ordering?
A: GWK-7HBE30-LW-XL is the manufacturer part number. The OEM part number is 7HBE30-LW (without the XL prefix). When ordering, always use the exact SKU GWK-7HBE30-LW-XL to ensure you receive the 97A wheels, not the standard 95A version. There are no published cross-references to other brands. Do not substitute wheels from different Toyota models, even if they appear to fit; internal tolerances will cause assembly problems.
