Product Description

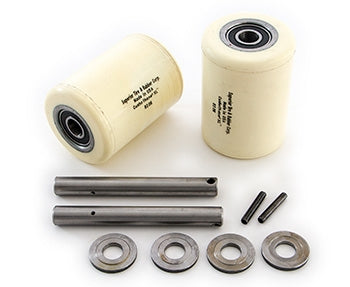

Hyster GWK-W40XT-XL-LW Load Wheel Kit is designed for direct replacement on Hyster W40XT and W40XL electric pallet trucks. Kit features poly load wheel assemblies utilizing 97A hardness polyurethane tread with sealed ball bearings and includes a hardened steel axle with mounting hardware.
Compatibility: Fits pallet jacks made by Hyster, model W40 XT. Alternate model: W40XT. SKU: GWK-W40XT-XL-LW
Specifications
Material & Construction
| Outer Tread Hardness | 97A polyurethane |
| Axle Material | Hardened steel |
| Bearing Material | Precision steel |
Part Numbers
| OEM Part Number | GWK-W40XT-XL-LW |
| Manufacturer Part Number | GWK-W40XT-XL-LW |
Frequently Asked Questions
Q: Will GWK-W40XT-XL-LW fit my W40 pallet jack models?
A: Yes. GWK-W40XT-XL-LW is designed for direct replacement on Hyster W40XT and W40XL electric pallet trucks. This kit is a bolt-on fit; no modifications are required. If your model number is W40XT or W40XL, install with confidence.
Q: What hardness rating does the polyurethane tread have?
A: The load wheel assembly uses 97A durometer polyurethane. This hardness resists wear on smooth warehouse floors and holds up under continuous duty. Higher durometer (97A vs 95A) means longer life on hard surfaces but slightly less grip on wet or textured floors.
Q: Can I install this kit myself or do I need a technician?
A: Installation is field-serviceable. You will need basic hand tools and a jack to lift the truck. Remove the old wheel assembly, slide off the axle, install the new hardened steel axle with sealed ball bearings, and bolt it back into the carriage. Total time is 15-20 minutes per wheel. Always chock the truck wheels before working underneath.
Q: How long do these wheels last before replacement?
A: In normal warehouse service (4-8 hour shifts), expect 12-24 months before the tread begins to cup or wear flat. Heavy duty or continuous operations may reduce lifespan to 8-12 months. Inspect quarterly for flat spots or edge cracking. Replace when tread depth drops below 0.5 inches or wheels become visibly uneven.
Q: What type of bearings are included?
A: GWK-W40XT-XL-LW includes sealed ball bearings integrated into each load wheel hub. Sealed design means no lubrication is required during service life. If bearings begin to rattle or spin freely without resistance, the wheel assembly has failed and must be replaced as a unit.
