Product Description

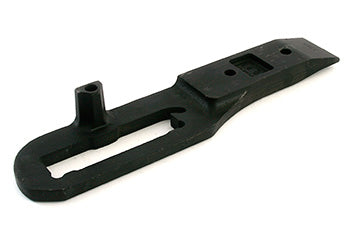

Raymond OEM wheel plate RA 1053390 is a right-hand, high-strength steel component designed for electric lift truck models 7400, 7420, and 7440, used in open toe wheel arms with sideshift configuration. Compatible with multiple load wheel assemblies and engineered for precise fitment with OE hardware.
Specifications
Dimensional Specifications
| Mounting Configuration | Designed for open toe wheel arm installations with sideshift on Raymond 7400, 7420, 7440 series trucks |
Mechanical Specifications
| Manufacturer Part Number | RA 1053390 |
| Compatible Load Wheel Part Numbers | RA 632-043, RA 632-043-A, RA 632-043-XL, RA 632-043-XL-A |
| Shoulder Bolt Specification | RA 5-018-008 |
| Flat Washer Specification | RA 5-016-017 |
| Lock Nut Specification | RA 1043118 |
| Wheel Plate Sleeve Specification | RA 632-043 |
| Shim Specification | RA 771-033, thickness 0.04 inch |
| Spacer Specification | RA 1031101 |
| Plate Carrier Specification | RA 623-010-109 |
| Load Wheel Axle Options | RA 1014758/001 for 2.88 inch wide wheels; RA 1014758/002 for 3.62 inch wide wheels |
| Lube Fitting Specification | RA 841-111 |
| Spiral Pin Specification | RA 810-761 |
| Material Composition | High-strength steel engineered for electric lift truck duty |
| Orientation | Right-hand configuration (left-hand equivalent: RA 1053389) |
Frequently Asked Questions
Q: Which Raymond models is the RA 1053390 designed for?
A: The RA 1053390 is designed for Raymond 7400, 7420, and 7440 series electric lift trucks in open toe wheel arm configuration with sideshift.
Q: What load wheel assemblies are compatible with the RA 1053390?
A: The RA 1053390 is compatible with load wheels RA 632-043, RA 632-043-A, RA 632-043-XL, and RA 632-043-XL-A. Verify your load wheel part number before ordering to ensure proper fitment with your truck configuration.
Q: What is the orientation of the RA 1053390?
A: The RA 1053390 is a right-hand wheel plate. For left-hand configuration, order the RA 1053389.
Q: What material is the RA 1053390 manufactured from?
A: The RA 1053390 is manufactured from high-strength steel engineered for electric lift truck duty in the Raymond 7400-7440 series.
Q: What hardware components are included in the assembly specification?
A: The RA 1053390 wheel plate assembly uses Raymond shoulder bolts (RA 5-018-008), flat washers (RA 5-016-017), lock nuts (RA 1043118), and related hardware such as shims (RA 771-033), spacers (RA 1031101), and lube fittings (RA 841-111).
Q: How should I store the RA 1053390 wheel plate when not in use?
A: Store the wheel plate in a dry location to prevent corrosion. Keep hardware components organized in a sealed container to prevent loss of small parts and dust accumulation.
