Product Description

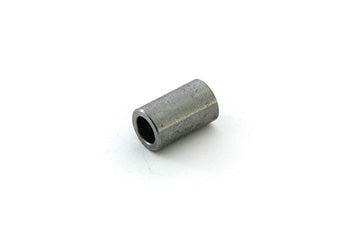

The 1043118 is a precision-machined bearing support sleeve designed for Raymond 7400, 7420, and 7440 series reach trucks. This component provides structural support in open-toe wheel plate assemblies equipped with 5.00-inch diameter load wheels. It interfaces with shoulder bolt hardware and axle assemblies to ensure proper load wheel mounting and alignment in warehouse material handling operations.
Specifications
Assembly
| Assembly Sequence Position | Item 8 in open-toe wheel plate assembly diagram |
| Related Fastener Hardware | Works with 1043118 shoulder bolt and lock nut assemblies |
| Axle Compatibility | Fits 2.88-inch or 3.62-inch width load wheels on Raymond axle assemblies |
| Load Wheel Size | 5.00-inch diameter |
| Wheel Width Options | 2.88-inch or 3.62-inch |
Part Numbers
| Part Number | 1043118 |
| Alternate Designation | RA 1043118 |
| Compatible Equipment Models | Raymond 7400, 7420, 7440 series reach trucks |
Frequently Asked Questions
Q: What is the RA 1043118 wheel plate sleeve and which Raymond reach trucks does it fit?
A: The RA 1043118 is a precision-machined bearing support component for open-toe wheel plate assemblies. It is designed for Raymond 7400, 7420, and 7440 series reach pallet trucks equipped with 5.00 inch diameter load wheels in 2.88 inch or 3.62 inch widths. This is item 8 in the assembly diagram.
Q: What are the specifications and material properties of this wheel plate sleeve?
A: The RA 1043118 is an engineered bearing support sleeve that provides structural interface for load wheel mounting. It is precision-machined to tight tolerances to ensure proper shoulder bolt and axle assembly alignment. The component is designed for repeated load cycling in material handling applications.
Q: What hardware does the RA 1043118 work with in the wheel plate assembly?
A: This wheel plate sleeve interfaces with the RA 5-005-017 shoulder bolt and standard axle assemblies in Raymond reach truck wheel plate configurations. Verify that your shoulder bolt and axle hardware match the assembly diagram for proper fitment.
Q: How do I verify compatibility before ordering the RA 1043118?
A: Check your equipment nameplate to confirm it is a Raymond 7400, 7420, or 7440 series reach truck. Verify that your load wheels are 5.00 inch diameter and either 2.88 or 3.62 inch width. Confirm your assembly uses an open-toe wheel plate configuration with the RA 5-005-017 shoulder bolt.
