Product Description

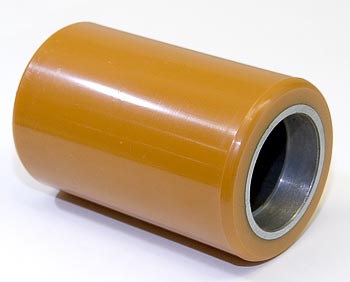

Polyurethane Load Wheel for Raymond 8300, 8400, 8500, 8600, and 8900 series electric pallet trucks. This precision-molded polyurethane wheel features a 95 Shore A durometer for balanced traction and wear resistance. Designed as a direct replacement for multiple Raymond part cross-references, it delivers reliable performance in warehouse and distribution environments. The wheel is manufactured to factory specifications and compatible with standard Raymond ball bearing assemblies.
Specifications
Dimensions
| Wheel Diameter | 3.250 inches |
| Face Width | 5.000 inches |
| Plain Bore | 2.047 inches |
Material & Construction
| Wheel Material | Polyurethane, precision-molded to tolerance |
| Durometer | 95 Shore A |
| Finish | Machined surface, uncoated polyurethane tread |
| Bearing Specification | Compatible with Raymond ball bearing specification |
Part Numbers & Compatibility
| Part Number | RA 632-016-003 |
| Manufacturer Part Number | 632-016-003 |
| Direct Replacement For | 632-016/003, 632-016/007, 632-016/008, 632-016/101 |
| Supersedes | 632-016/001 |
| Cross-Reference Numbers | RA632-016-003, RA632016003, 632016003 |
| Compatible Models | Raymond 8300, 8400, 8500, 8600, 8900 Series Electric Pallet Trucks |
Frequently Asked Questions
Q: Which Raymond electric pallet truck models does the RA 632-016-003 fit?
A: The RA 632-016-003 is a direct replacement for Raymond 8300, 8400, 8500, 8600, and 8900 series electric pallet trucks. It is a precision-molded polyurethane load wheel designed for equipment using standard ball bearing specifications. Verify your truck model and serial range match these series before ordering.
Q: What are the wheel dimensions and material specification of the RA 632-016-003?
A: The RA 632-016-003 wheel is 3.250 inches in diameter and 5.000 inches in face width. The hub bore is 2.047 inches with a plain (smooth) bore design. The wheel is precision-molded polyurethane with a 95 Shore A durometer rating. This is a wheel-only component; bearings are not included.
Q: What Raymond part numbers does the RA 632-016-003 replace?
A: The RA 632-016-003 is a direct replacement for Raymond part numbers 632-016/003, 632-016/007, 632-016/008, and 632-016/101. The RA 632-016-003 supersedes the older 632-016/001 design. Cross-reference equivalents include RA632-016-003, RA632016003, and 632016003.
Q: Is the RA 632-016-003 a direct swap for the 632-016/001 it supersedes?
A: The RA 632-016-003 supersedes the 632-016/001, and both share the same 3.250 inch diameter, 5.000 inch width, and 2.047 inch bore. However, the 003 version has updated precision-molded tread design and 95 Shore A hardness. Replace both load wheels at the same time for even wear and performance.
Q: Can the RA 632-016-003 be used with different bearing types?
A: The RA 632-016-003 is compatible with standard Raymond ball bearing specifications for the 8300-8900 series. The plain bore design allows use of sealed or open ball bearings, as long as the bearing type matches your truck specifications. Verify the bearing bore diameter (typically 25 mm or 1 inch) before assembly.
Q: What is the expected service life of the RA 632-016-003 wheel?
A: The RA 632-016-003 polyurethane wheel typically lasts 2-4 years in normal warehouse operation. The 95A durometer is a balanced compound for traction and wear resistance. Service life depends on load weight, floor condition, and hours of operation. Inspect wheels quarterly for flat spots, cracking, or tread separation. Replace if visible damage affects load stability or wheel balance.
