Product Description

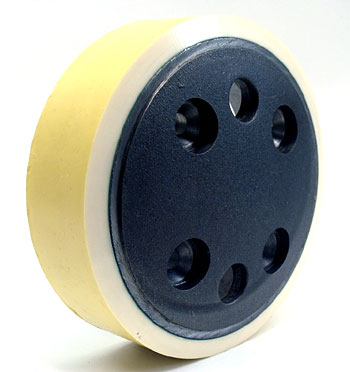

The SU S9154-XL is an XL3 polyurethane load wheel, engineered for electric lift truck and pallet jack applications. Features include a 5.00 inch diameter, 2.687 inch tread width, 4.125 inch hub length, and 2.441 inch bore diameter. Manufactured for extreme duty cycles using advanced XL3 bonding technology. Compatible with multiple electric lift truck models within industry standards.
Specifications: 8.500 inch diameter x 2.687 inch width (8.500" x 2.687" | 8.5 x 2.69 wheel | 8-1/2 x 2.687 | 215.90mm x 68.25mm)
Specifications
Material
| Tread Material | XL3 polyurethane |
| Bonding Technology | XL3™ chemical/mechanical polyurethane bonding |
Part Numbers
| Manufacturer Part Number | SU S9154-XL |
Wheel Dimensions
| Outside Diameter | 8.5 |
| Width Side to Side | 2.687 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.527 |
| Bore Outside Diameter | 2.753 |
Frequently Asked Questions
Q: What is the tread material and bonding technology used in the SU S9154-XL?
A: The SU S9154-XL features XL3 polyurethane tread material with XL3 chemical and mechanical polyurethane bonding technology. This advanced bonding method is designed for extreme duty cycles in electric lift truck applications, providing superior adhesion and resistance to separation during high-load operations.
Q: What are the dimensional specifications for the SU S9154-XL load wheel?
A: The SU S9154-XL has an outside diameter of 8.5 inches, width of 2.687 inches, hub length of 4.125 inches, and a bore diameter of 2.441 inches. The bore depth is 0.527 inches with a bore outside diameter of 2.753 inches. The tread profile features a 3/8 inch radius.
Q: Which electric lift truck models are compatible with the SU S9154-XL?
A: The SU S9154-XL is engineered for multiple electric lift truck models within industry standards. Always verify that the 8.5 x 2.687 dimension matches your equipment hub configuration before ordering. Cross-reference your truck model documentation or contact your equipment manufacturer to confirm compatibility.
Q: What maintenance is required to extend the life of an SU S9154-XL wheel?
A: Inspect the wheel regularly for uneven wear, cracks, or flat spots. Clean debris from the tread using a brush to maintain traction. Monitor the hub connection for looseness and ensure the wheel rotates freely. XL3 polyurethane wheels typically last 2-4 years in moderate to heavy-duty warehouse service. Replace immediately if tread separation or hub damage occurs.
Q: What is the maximum load capacity per wheel for the SU S9154-XL?
A: Load capacity depends on your specific electric lift truck model, the hub assembly, and the total truck configuration. The SU S9154-XL is constructed for extreme duty cycles, but you must verify load limits in your truck manual. Do not exceed manufacturer specifications, as overloading causes premature wear and safety hazards.
Q: How do I remove and install the SU S9154-XL wheel?
A: Remove the retaining nut or snap ring from the axle, then slide the old wheel off. Line up the bore diameter (2.441 inches) with the axle and slide the SU S9154-XL into position. Secure with the original retaining hardware and ensure the wheel spins freely without binding. Do not over-tighten, as this can damage the bore.
