Yale wiring harness for electric lift trucks
YL 524149835
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

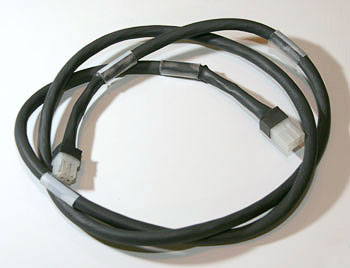

Yale YL 524149835 wiring harness for electric lift truck handle control. OEM specification, multi-conductor harness, compatible with Yale electric pallet jacks and lift trucks. 24VDC nominal system, color-coded wires, 12-pin connector, abrasion-resistant construction, injection-molded nylon connector body, tin-plated copper contacts, industrial-grade thermoplastic cable sheath.
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Model | MPB045VG |
| Manufacturer Part Number | YL 524149835 |
| Part Number | YL 524149835 |
| Equivalent Part Numbers | YT524149835, YT 524149835 |
Electrical Specifications
| Nominal Voltage Rating | 24VDC system compatibility |
Performance Specifications
| Operating Cycle | Continuous operation compatible; designed for repeated handle movements |
Additional Specifications
| Primary Connector | 12-pin handle control electrical connector |
| Description | Yale YL 524149835 wiring harness for electric lift truck handle control. OEM specification, multi-conductor harness, compatible with Yale electric pallet jacks and lift trucks. 24VDC nominal system, color-coded wires, 12-pin connector, abrasion-resistant construction, injection-molded nylon connector body, tin-plated copper contacts, industrial-grade thermoplastic cable sheath. |
Frequently Asked Questions
Q: What is the YL 524149835 and what does it control?
A: The YL 524149835 is a multi-conductor wiring harness that connects the handle control assembly to the truck power and logic circuits. It transmits operator commands such as lift, lower, and tilt from the push button interface to the electric motor and solenoid control systems.
Q: Which makes and models is the YL 524149835 compatible with?
A: The YL 524149835 is compatible with the MPB045VG model from Yale.
Q: What materials are used in the construction of the YL 524149835?
A: The YL 524149835 features an industrial-grade thermoplastic cable sheath and an injection-molded nylon connector body with tin-plated copper contacts.
Q: How can I tell if the YL 524149835 needs to be replaced?
A: Replace the YL 524149835 if you experience intermittent or complete loss of handle control functions, visible cable sheath damage, pin corrosion at the connector interface, or continuity failures detected during electrical diagnostics.
Q: Are there other part numbers that can be used as a replacement for the YL 524149835?
A: Cross-reference equivalent part numbers include yt524149835 and yt 524149835. Confirm the connector type and configuration match your truck model before ordering.
