Product Description

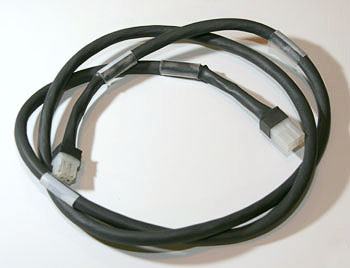

Yale YL 524149836 is an OEM wiring harness designed for the control handle of Yale electric pallet jacks and lift trucks. It features factory-specification connectors, PVC sheath, and is intended for seamless replacement and reliable control circuit performance. Cross-references YT524149836 and YT 524149836. No additional part number supersessions found. For technical detail consult Yale OEM schematics.
Specifications
Electrical
| Voltage Rating | Designed for 24VDC control circuit applications |
Part Numbers
| OEM Part Number | YL 524149836 |
| Alternate Part Numbers | YL524149836, YT524149836, YT 524149836 |
Frequently Asked Questions
Q: What is the YL 524149836 wiring harness designed for on Yale electric pallet jacks?
A: The YL 524149836 is an OEM wiring harness for the control handle circuit on Yale electric pallet jacks and lift trucks. It connects the operator push-button interface to the truck controller and motor drive system, transmitting control signals for lift and lower operations.
Q: What is the voltage rating and application context for the YL 524149836 harness?
A: The YL 524149836 is designed for 24VDC control circuit applications. It is factory-specified for the control handle connector and features PVC cable sheath rated for continuous duty operation in industrial warehouse environments with regular exposure to moisture and contamination.
Q: What are the cross-reference part numbers for the YL 524149836?
A: Cross-reference part numbers include YL524149836 (no space), YT524149836, and YT 524149836. Use the exact OEM schematic or truck nameplate to confirm the correct part number matches your specific truck model before ordering.
Q: How does the PVC sheath construction of the YL 524149836 differ from thermoplastic alternatives?
A: PVC sheath provides superior oil resistance and flame retardancy compared to generic thermoplastic jackets. This factory-specification material is selected for handle harnesses to withstand extended contact with hydraulic fluid and thermal stress from high-amperage transients during motor starting cycles.
Q: Can the YL 524149836 harness be used as a replacement for other Yale control harness part numbers?
A: The YL 524149836 is designed for specific truck models and control handle designs. Do not cross-fit to other Yale models without confirming connector type, cable length, and pin assignment compatibility via OEM schematics. Incorrect fitment will result in control circuit failure or safety hazards.
