Product Description

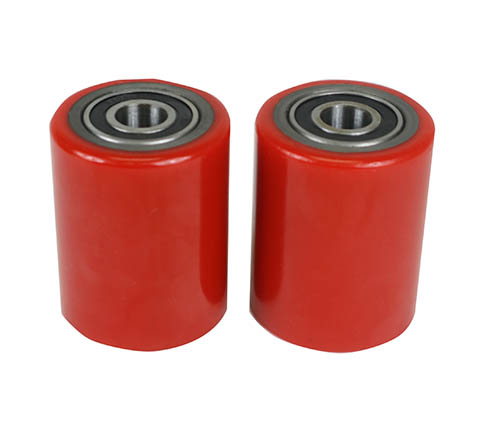

Replace your worn pallet jack load wheels with this 2-pack of heavy-duty polyurethane wheels — a direct fit for the Eoslift EOS08 part specification and dozens of compatible NA-standard pallet trucks.
These load wheels measure 3-9/16 inches (90mm) in hub length and 2-15/16 inches (74mm) in outer diameter, with a 20mm bore designed for standard 6204-series ball bearings. Each wheel ships with two pre-installed 6204-2RS double-sealed deep-groove ball bearings, ready to mount directly onto your existing axles.
Compatible pallet jack models include:
- Eoslift M25, M25N, M25NS, M30, M20L, M20Z (galvanized), M20S (stainless)
- Eoslift E20V, E20M, E20MP scale pallet trucks
- Most North America-standard hand pallet trucks from Apollolift, Tory Carrier, VisionTechShop, Wesco, Vestil, Anyload, Adam Equipment, CAS, Rice Lake, and other major brands that use 3-9/16" × 2-15/16" load wheels with 20mm bearings
- Generic Chinese-import 48" × 27" pallet trucks with 6204-2RS bearings
This is a replacement / aftermarket part. Not affiliated with or endorsed by Eoslift. EOS08, M25, M30, and other model designations are trademarks of their respective owners and are referenced for fitment identification only.
Specifications
Compatibility
| Compatible With | Eoslift M25, M25N, M25NS, M30, M20L manual pallet jacks; E20V, E20M, E20MP scale pallet trucks; and most North America hand pallet trucks with 20 mm bore load wheels |
| Cross-Reference Part | Eoslift EOS08 |
| Also Fits | Apollolift, Tory Carrier, VisionTechShop, Wesco, Vestil, Adam Equipment, CAS, Rice Lake, Anyload, Noblelift, and most generic Chinese-import 48 in. × 27 in. hand pallet trucks with 20 mm bore load wheels |
| Not Compatible With | Eoslift M20LP (low profile), I-series scissor lift pallet jacks, W20 / W15E / G20 / G25 electric pallet trucks |
Wheel Dimensions
| Wheel Diameter | 2-15/16 in. (74 mm) |
| Hub Length | 3-9/16 in. (90 mm) |
| Bore (Bearing ID) | 20 mm |
| Wheel Type | Single load wheel (tandem-style) |
Construction
| Wheel Construction | Cast-bonded polyurethane tread on cast iron hub |
| Tread Material | 95 Shore A polyurethane (mold-on) |
| Hub Material | Cast iron, black finish |
| Color | Bright red tread, black hub |
| Non-Marking | Yes — leaves no marks on concrete, epoxy, or tile |
Bearings
| Bearing Model | 6204-2RS sealed deep-groove ball bearing |
| Bearing Dimensions | 20 mm bore × 47 mm outer diameter × 14 mm width |
| Bearings per Wheel | 2 (pre-installed) |
| Seal Type | Double-sealed nitrile rubber (NBR) |
Performance
| Load Capacity (per kit) | 6,600 lb (3,300 lb per wheel) |
| Operating Temperature | -40°F to 180°F |
| Floor Surface Suitability | Smooth concrete, epoxy, sealed warehouse floors |
| Application Type | Manual hand pallet trucks and manual scale pallet trucks |
Package Contents
| Quantity | 2 load wheels per package |
| Bearings Included | Yes — pre-installed in each wheel |
| Hardware Included | No — axles, retention pins, and washers sold separately (see Complete Wheel Kit SKU) |
Part Numbers
| SKU | WL 12200 |
| OEM Cross-Reference | EOS08 (Eoslift) |
Frequently Asked Questions
Q: Is this load wheel kit a direct replacement for the Eoslift EOS08 part?
A: Yes. This kit matches the Eoslift EOS08 specification exactly: 3-9/16 in. hub length, 2-15/16 in. diameter, 20 mm bore, with two pre-installed 6204-2RS sealed ball bearings per wheel. It is an aftermarket replacement product designed for direct fitment, not OEM-branded.
Q: Does this kit include axles, retention pins, or washers?
A: No. This kit includes the two load wheels with pre-installed bearings only, identical contents to the Eoslift EOS08. If you also need replacement axles, GB879.1 retention pins, and flat washers, order our Complete Load Wheel Kit, which adds all the hardware needed to fully install the wheels on your pallet truck.
Q: What is the durometer hardness of the polyurethane tread?
A: The wheels feature a 95 Shore A polyurethane tread cast-bonded to a cast iron hub. This hardness level balances rolling efficiency with floor protection and is the standard durometer for manual hand pallet jack load wheels. For heavier-duty applications, a 70 Shore D Ultra-Poly variant is available on request.
Q: Which Eoslift pallet jack models is this load wheel kit compatible with?
A: This kit fits Eoslift M25, M25N, M25NS, M30, and M20L manual pallet jacks, as well as E20V, E20M, and E20MP scale pallet trucks. It is also compatible with most North America hand pallet trucks using 20 mm bore load wheels, including Apollolift, Tory Carrier, VisionTechShop, Wesco, Vestil, Adam Equipment, CAS, Rice Lake, Anyload, and Noblelift models.
Q: Will this kit fit electric pallet trucks or scissor lift pallet jacks?
A: No. Eoslift W20, W15E, G20, and G25 electric pallet trucks use a different load wheel size (84 mm by 84 mm). The Eoslift M20LP low-profile model uses a 50 mm by 95 mm load wheel, and the I-series scissor lift pallet jacks use 75 mm by 50 mm load wheels. This kit is designed exclusively for standard manual hand pallet trucks and manual scale pallet trucks.
Q: How long should these load wheels last under normal warehouse use?
A: Service life depends on load, floor surface, and operational intensity. In typical warehouse environments with regular cleaning and moderate daily use on smooth concrete, 95A polyurethane load wheels generally provide 18 to 36 months of service before replacement becomes necessary. Floors with debris, oil exposure, or continuous heavy loading will shorten this lifespan.
Q: What tools do I need to install these load wheels?
A: You need a hammer and a 5 mm pin punch to remove the existing GB879.1 spring retention pins from the axle ends. Slide the old wheels off, install the new wheels with bearings, and re-insert the pins. Installation typically takes under 10 minutes per truck. No specialized pallet jack tools are required.
Q: Are these load wheels non-marking on epoxy and sealed concrete floors?
A: Yes. The 95 Shore A polyurethane tread is non-marking and does not transfer color, residue, or staining to clean concrete, epoxy, or tile floors. Polyurethane resists oils, mild solvents, and impact damage better than rubber alternatives, making it ideal for warehouse, distribution center, and retail floor applications.
Q: Are these load wheels suitable for cold storage or freezer environments?
A: The 95 Shore A polyurethane tread is rated for -40 F to 180 F and functions in cold storage environments. For sub-zero freezer applications or environments with frequent chemical exposure, a Nylon Load Wheel Kit with 75 Shore D solid nylon construction is recommended as a more durable alternative for these conditions.
Q: What is the total load capacity of this wheel kit?
A: Each wheel is rated for 3,300 lb, giving the pair a combined static capacity of 6,600 lb. This matches the rated capacity of the Eoslift M30 (6,600 lb) and exceeds the requirements of the M25 (5,500 lb), M20 (4,400 lb), and the E20-series scale pallet trucks (4,400 lb).
