Dayton Handle Assembly for 4YX97 Manual Pallet Jack
WW 96-1
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

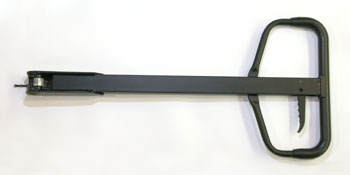

Dayton WW 96-1 Handle Assembly: Complete OEM replacement handle assembly for Dayton manual pallet jack model 4YX97. Steel construction, ergonomic grip, includes pivot hardware, roll pins, grease cup, snap ring, thrust plate, and handle control chain. Three-position lever for Raise, Drive, Lower. Mounts using OEM hardware.
Specifications
Material & Construction
| Material | Steel |
Part Numbers & Compatibility
| Make | Dayton |
| Model | 4YX97 |
| Part Number | WW 96-1 |
| Lift Control Compatibility | Designed for use with Dayton hydraulic manual pallet jack control assembly (model 4YX97) |
Additional Specifications
| Description | Dayton WW 96-1 Handle Assembly: Complete OEM replacement handle assembly for Dayton manual pallet jack model 4YX97. Steel construction, ergonomic grip, includes pivot hardware, roll pins, grease cup, snap ring, thrust plate, and handle control chain. Three-position lever for Raise, Drive, Lower. Mounts using OEM hardware. |
| Features | Ergonomic grip, includes pivot hardware, roll pins, grease cup, snap ring, thrust plate, and handle control chain |
| Lever Positions | Three-position lever for Raise, Drive, Lower |
| Mounting Method | Mounts using OEM hardware |
Frequently Asked Questions
Q: What models is the WW 96-1 compatible with?
A: The WW 96-1 is a replacement handle assembly designed for Dayton 4YX97 manual pallet jacks. Confirm your equipment model number matches before ordering.
Q: What materials are used in the WW 96-1 handle assembly?
A: The WW 96-1 features steel construction throughout the handle body and leverage points. The ergonomic grip provides tactile control, and all pivot hardware uses hardened steel components for durability under repeated lifting cycles.
Q: What is included in the WW 96-1 assembly?
A: The assembly includes the complete handle structure, pivot hardware, roll pins, grease cup, snap ring, thrust plate, and handle control chain. The three-position lever enables Raise, Drive, and Lower functions for hydraulic control.
Q: How long does a WW 96-1 handle assembly typically last?
A: Lifespan depends on usage frequency and maintenance. Regular greasing through the included grease cup extends bearing life and lever smoothness. Steel construction resists wear, but the control chain and pivot points require periodic inspection for signs of fatigue or slack.
Q: What are the replacement guidelines for the WW 96-1?
A: The WW 96-1 is a replacement part for Dayton 4YX97 manual pallet jacks. It mounts using standard hardware and maintains factory control compatibility with Dayton hydraulic systems.
