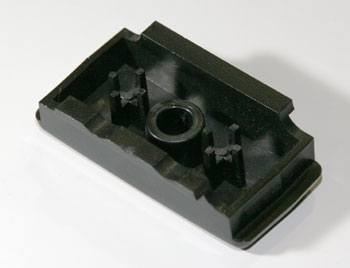

Yale Switch Actuator for MP/MPB040AC Models
YL 505487500
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Yale switch actuator, auto reverse — OEM part YL 505487500. Designed for integration into electric lift truck control handles, this actuator supports automatic reverse switching for Yale MP/MPB040AC models. Features industrial-grade copper alloy contacts, heavy-duty thermoplastic housing, direct-fit mounting, and momentary contact activation compatible with 12VDC or 24VDC circuits.
Compatibility: Fits pallet jacks made by Yale, model MP/MPB040AC. SKU: YL 505487500
Specifications
Dimensional Specifications
| Mounting Interface | Direct fitment in control handle assembly for Yale MP/MPB040AC |
Electrical Specifications
| System Operating Voltage | Compatible with 12VDC and 24VDC control circuits |
Material & Construction
| Switch Housing Material | Heavy-duty thermoplastic shell per Yale OEM specification |
Mechanical Specifications
| Mounting Hole Pattern | 0.59 inch center-to-center spacing |
Part Numbers & Compatibility
| OEM Part Number | YL 505487500 |
| Model Compatibility | Yale MP/MPB040AC |
Performance Specifications
| Duty Cycle | Designed for continuous service, up to 120 cycles per hour |
Frequently Asked Questions
Q: What voltage systems is the YL 505487500 switch actuator compatible with?
A: The YL 505487500 is rated for both 12VDC and 24VDC control circuits. This dual-voltage compatibility makes it adaptable to most Yale MP/MPB040AC electric pallet jack systems, whether your fleet runs lower or higher voltage control systems.
Q: Which Yale pallet jack models fit the YL 505487500 actuator?
A: This switch actuator is designed as a direct-fit OEM part for Yale MP/MPB040AC models. Verify your equipment model before ordering to ensure compatibility with your control handle assembly.
Q: What material are the contacts on this switch actuator?
A: The YL 505487500 features industrial-grade copper alloy contacts housed in a heavy-duty thermoplastic shell. This construction provides reliable electrical performance and durability in repeated momentary contact activation cycles.
Q: How does the auto reverse switching function work on this actuator?
A: The auto reverse switching capability is integrated into the control handle design for Yale MP/MPB040AC models. This allows automatic reversal of lift direction without requiring manual reconfiguration of control circuits.
Q: Is this an OEM part or aftermarket equivalent?
A: The YL 505487500 is an OEM part manufactured to Yale specifications for direct integration into Yale electric lift truck control handles. It is the original equipment component for the MP/MPB040AC series.
