Product Description

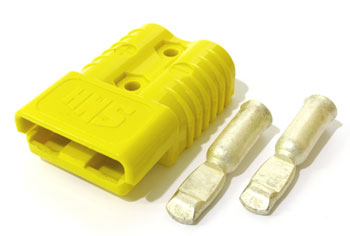

Barrett BR 8268-004 is an OEM yellow 1/0 battery connector rated for 175 Amp, designed for electric lift truck applications requiring single pole flat contact engagement, compatible with panel or cable mounting, manufactured with copper alloy contacts and high-impact thermoplastic housing, and cross-referenced as BR8268 and 8268.
Specifications
Electrical
| Rated Current Capacity | 175 Ampere |
| Max Voltage Rating | 600 VDC |
Part Numbers
| OEM Part Number | BR 8268-004 |
| Manufacturer Part Number | BR 8268-004 |
| Cross-Reference Part Numbers | BR8268, 8268 |
| Supersedes/Replaces | No cross-reference part numbers available beyond BR8268, 8268 |
Frequently Asked Questions
Q: What is the amperage rating for the BR 8268-004?
A: The BR 8268-004 is rated for 175 Amps continuous duty. This connector is designed for standard-load battery circuits in Barrett electric lift trucks and compatible material handling systems.
Q: What wire gauge is the BR 8268-004 designed for?
A: The BR 8268-004 is designed for 1/0 AWG cable. Confirm your cable size matches before ordering to ensure proper fit and electrical performance.
Q: What color is the BR 8268-004?
A: The BR 8268-004 is yellow. Yellow connectors are typically used for specific battery circuit configurations in Barrett equipment. Verify color coding matches your equipment diagram.
Q: What contact style does the BR 8268-004 use?
A: The BR 8268-004 features single pole flat contact engagement. This design provides positive connection reliability in high-current DC circuits common in lift truck applications.
Q: Does the BR 8268-004 support panel or cable mounting?
A: The BR 8268-004 is compatible with both panel-mount and cable-mount installations. Check your equipment configuration to verify which mounting style is required.
Q: What is the maximum voltage rating for the BR 8268-004?
A: The BR 8268-004 is rated for 600VDC maximum, which aligns with standard battery-powered lift truck voltage specifications.
