Product Description

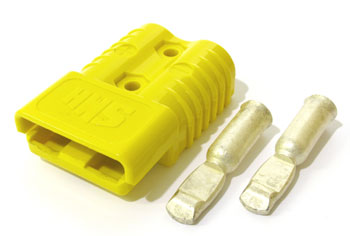

YELLOW CONN HY 253221 is an original equipment wiring connector for Hyster electric lift trucks, constructed of nylon engineering resin, equipped with 2 tin-plated copper terminals, rated for 24VDC nominal system voltage, and compatible with 18-14 AWG stranded copper wire in continuous duty electrical circuits.
Specifications
Dimensional Specifications
| Contact Spacing | 0.165 inch center-to-center |
Electrical
| Rated Voltage | 24VDC nominal system compatibility |
| Number of Contacts | 2 terminals |
Material & Construction
| Flame Retardancy | UL94 V-0 rated |
Part Numbers
| OEM Part Number | HY 253221 |
Frequently Asked Questions
Q: What is the HY 253221 yellow connector used for on Hyster electric lift trucks?
A: The HY 253221 is an original equipment wiring connector for Hyster electric lift trucks. It is rated for 24VDC nominal system voltage and designed for low-voltage signal and control circuits in continuous duty applications.
Q: What wire gauge does the HY 253221 connector accept?
A: The HY 253221 is compatible with 18-14 AWG stranded copper wire. This gauge range covers typical signal and control circuits on Hyster electric pallet trucks.
Q: How many terminals does the HY 253221 have?
A: The HY 253221 is equipped with 2 tin-plated copper terminals for two-wire connections. The 0.165 inch center-to-center contact spacing is standard for this connector type.
Q: What is the contact spacing on the HY 253221 connector?
A: The HY 253221 features 0.165 inch center-to-center contact spacing. This dimension ensures compatibility with Hyster wiring harnesses and control circuits.
Q: What safety ratings does the HY 253221 connector have?
A: The HY 253221 is constructed from nylon engineering resin and carries UL94 V-0 flame retardancy rating. This specification ensures safe operation in electrical control circuits under continuous duty conditions.
Q: What material are the HY 253221 terminals made from?
A: The HY 253221 terminals are tin-plated copper. Tin plating provides corrosion resistance and ensures reliable low-voltage signal transmission in continuous duty electrical circuits.
