Product Description

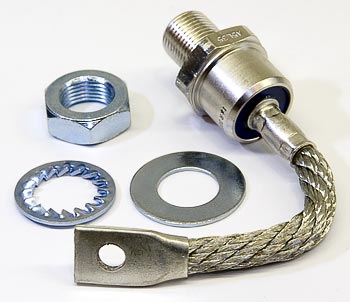

OEM rectifier diode 504227211 for Yale and Hyster electric lift trucks, cross-referencing 0368908 and 259A9208PXC, used in lift truck electrical systems for charging and circuit protection.
Specifications
Part Numbers
| OEM Part Number | 504227211 |
| Manufacturer Part Number | 504227211 |
| Cross-Reference Part Numbers | 0368908, 259A9208PXC |
Frequently Asked Questions
Q: What does the YL 504227211 rectifier diode do in an electric lift truck electrical system?
A: The YL 504227211 rectifier diode converts AC current to DC current in the charging and circuit protection systems of Yale and Hyster electric lift trucks. It prevents reverse current flow and protects sensitive electrical components from voltage spikes and circuit faults.
Q: What are the cross-reference part numbers for YL 504227211?
A: YL 504227211 cross-references to OEM part numbers 0368908 and 259A9208PXC. These are equivalent parts used in Yale and Hyster electrical systems. Verify your original part marking matches one of these numbers before ordering as a replacement.
Q: Which Yale and Hyster lift truck models use rectifier diode YL 504227211?
A: YL 504227211 is used in Yale and Hyster electric lift truck electrical systems, particularly in charging circuits and charger input protection. Check your equipment manual or parts diagram to confirm this diode is in your specific truck model and year, as electrical configurations vary.
Q: What symptoms indicate the YL 504227211 diode has failed?
A: Failed rectifier diodes typically cause charging system malfunction, battery not charging, or repeated circuit breaker trips. You may also see burned or discolored diode bodies or hear fuses blowing repeatedly. These are signs the diode should be tested and replaced immediately to prevent additional electrical damage.
Q: How is the YL 504227211 mounted in the electrical assembly?
A: The YL 504227211 rectifier diode is typically mounted on a circuit board or terminal assembly in the charger or main electrical cabinet. Polarity is critical: the cathode band marking must face the correct direction. Verify your schematic before replacement to ensure proper polarity orientation.
