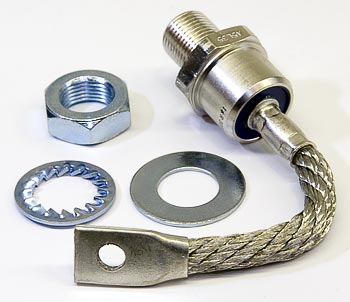

Yale Rectifier Electric Forklift DC Output
YL 504236236
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Yale YL 504236236 rectifier is an OEM electric lift truck part designed for DC output rectification in electric forklift systems. Rated for 35A continuous forward current and 150VDC output, it utilizes a full-wave silicon bridge configuration. Compatible with select Yale and Hyster equipment, equivalent to Hyster 504236236. Features include screw terminals, panel mounting, and molded insulation for durable industrial installation.
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Model | ERC040, ERC045, ERC050, ERC055, ERC060, ERC065 |
| Manufacturer Part Number | YL 504236236 |
| Part Number | 504236236 |
| Cross-Reference Part Numbers | Replaces 5042362-36, Equivalent to Hyster 504236236 |
| Superseded Part Number | Supersedes 504236236R |
| Cross Reference Part Numbers | Replaces 5042362-36, Equivalent to Hyster 504236236 |
Electrical Specifications
| Maximum Voltage Rating | 150VDC |
| Maximum Repetitive Peak Reverse Voltage (Vrrm) | 200V |
| Average Forward Current | 35A continuous |
| Forward Surge Current | 400A (peak, non-repetitive, 8.3ms half-sine wave) |
Performance Specifications
| Operating Frequency | 50/60 Hz |
Additional Specifications
| Enclosure Material | Molded thermoset plastic with UL-recognized insulation |
| Efficiency | 98% at rated load, 130VDC output |
| Description | Yale YL 504236236 rectifier is an OEM electric lift truck part designed for DC output rectification in electric forklift systems. Rated for 35A continuous forward current and 150VDC output, it utilizes a full-wave silicon bridge configuration. Compatible with select Yale and Hyster equipment, equivalent to Hyster 504236236. Features include screw terminals, panel mounting, and molded insulation for durable industrial installation. |
Frequently Asked Questions
Q: Which models is this rectifier compatible with?
A: This rectifier is compatible with ERC040, ERC045, ERC050, ERC055, ERC060, and ERC065 models.
Q: What materials is this rectifier made from?
A: This rectifier is constructed with durable industrial-grade materials to ensure long-lasting performance in electric forklift systems.
Q: How do I know if this is the right replacement part for my equipment?
A: Check your equipment model number and cross-reference it with the compatible models listed. This rectifier is designed for use in select Yale electric lift trucks.
Q: What are the key features of this rectifier?
A: This rectifier includes screw terminals, panel mounting options, and molded insulation for secure and durable installation in electric forklift systems.
Q: What is the function of this rectifier?
A: This rectifier converts AC power to DC output for use in electric lift truck systems, ensuring efficient and reliable operation.
