Battery Charger for Yale Electric Pallet Jack
YL 580034920
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

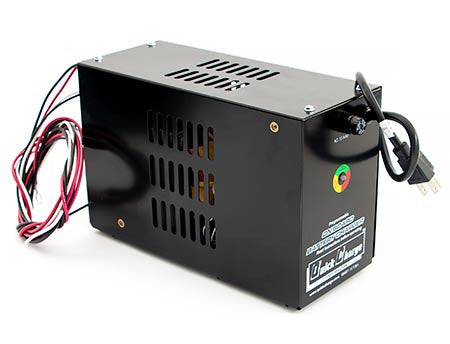

Yale YL 580034920 is an OEM on-board battery charger for Yale electric pallet trucks, providing 24VDC output at 18A, with input at 120VAC single-phase. Designed for direct vehicle installation on Yale models MPB040E and MPW045E, this Micro Control unit features microcontroller-regulated charging, full automatic operation, LED status indication, and reverse polarity protection. Supersedes and cross-references Yale part numbers YT580034920 and 580034920. Compatible with electric pallet trucks manu
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Model | MPB040E, MPW045E |
| Primary Part Number | YL 580034920 |
| Cross-Reference Part Numbers | YT580034920, YL580034920, 580034920 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 18 A |
| Charge Profile | Microcontroller-regulated, fully automatic |
| Connector Type | O-Ring Lugs |
| Battery Chemistry | Lead-acid (Wet, AGM, Gel) |
| Output Current Rating | 18A |
Additional Specifications
| Features | Microcontroller-regulated charging, automatic operation, LED status indication, reverse polarity protection |
Frequently Asked Questions
Q: What are the electrical specifications for the YL 580034920 battery charger?
A: The YL 580034920 provides 24VDC output at 18A charging current. Input is 120VAC single-phase, making it suitable for standard North American facility power. The charger includes microcontroller-regulated charging with automatic operation.
Q: Which Yale electric pallet truck models is the YL 580034920 compatible with?
A: The YL 580034920 is designed for Yale electric pallet trucks MPB040E and MPW045E. It mounts directly to the vehicle as part of the integrated charging system for these models.
Q: What are the battery chemistry and connector type for the YL 580034920?
A: The YL 580034920 is compatible with lead-acid batteries, including wet, AGM, and gel types. It uses O-Ring lugs as the connector type.
Q: What protection features does the YL 580034920 include?
A: The YL 580034920 features microcontroller-regulated charging, reverse polarity protection, and LED status indication. Full automatic operation means charging cycles without requiring manual intervention, and the reverse polarity protection prevents damage if battery terminals are connected incorrectly.
Q: What part numbers are equivalent to the YL 580034920?
A: The YL 580034920 is cross-referenced as YT580034920, YT 580034920, and 580034920. These are equivalent replacement part numbers that can be used interchangeably when ordering.
Q: Is the YL 580034920 compatible with electric pallet jacks from other manufacturers?
A: The YL 580034920 is built for Yale MPB040E and MPW045E models. Compatibility with other brands requires matching battery voltage (24VDC), charging current (18A), and vehicle electrical connector type. Verify specifications before ordering.
Q: How do I know when to replace the YL 580034920 battery charger?
A: Replace the YL 580034920 if charging cycles become erratic, LED indicators malfunction, or output voltage is unstable. Regular maintenance and monitoring will help ensure optimal performance.
