Battery Charger for Yale MPW045-E
YL 580087314
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

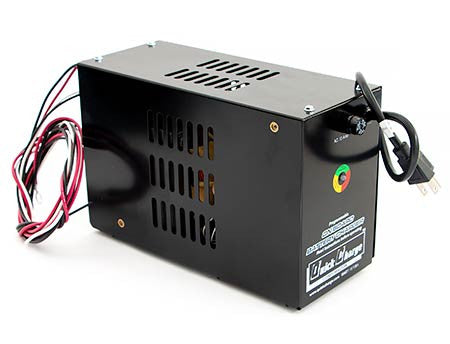

Yale 24V On-Board Battery Charger
The YL 580087314 is a programmable 24-volt on-board battery charger engineered for electric pallet jacks and walkie lift trucks. Supports lead acid, AGM, and gel battery chemistries with 15-amp DC output and 120VAC input. Factory-spec compatible with Yale and Hyster electric lift equipment, this charger delivers reliable, efficient power management for warehouse and dock operations.
Specifications
Part Numbers & Compatibility
| Make | Yale, Hyster |
| Model | MPW045-E, MPW050-E |
| Primary Part Number | YL 580087314 |
| Alternate Part Numbers | 580087314, YT580087314 |
| Cross-Reference Part Numbers | Replaces Yale 1-24012-04; equivalent to Quick Charge PJ2415 and OB2415PJ; compatible with Yale 1-24020-04-HF when used with 9 inch backplate |
| Related Part Numbers | 524245865, 580029671, 580034920, 580055473, 582003887 |
| Compatible Equipment Models | Yale MPW045-E; Hyster W40Z, W45Z |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 15 A |
| Charge Profile | automatic, float maintenance |
| Connector Type | O-Ring Lugs |
| Battery Chemistry | lead-acid, AGM, gel, lithium-ion |
| Nominal Charger Output Voltage | 24 VDC |
| Output Charging Current | 15 Amps DC (continuous) |
| Input Voltage Requirement | 120 VAC (nominal), 60 Hz |
| Input Current Draw | 4-6 Amps AC |
| Charge Output Bank | Single battery output |
| Output Voltage - Charging | 28 VDC (max proprietary charging stage) |
| Output Voltage - Float/Maintenance | 27 VDC |
| Supported Battery Types | Lead acid, AGM (absorbed glass mat), gel batteries |
Additional Specifications
| Enclosure Material | Cast metal (robust housing for industrial vehicle use) |
Frequently Asked Questions
Q: What battery types does the YL 580087314 charger support?
A: The YL 580087314 is compatible with lead acid, AGM, gel, and lithium-ion batteries. Ensure your equipment uses one of these battery chemistries before ordering.
Q: What are the electrical specifications for this charger?
A: The YL 580087314 provides 15A DC output and accepts 120VAC input. Confirm your facility power supply matches 120VAC before deployment.
Q: Which electric lift trucks is this charger compatible with?
A: The YL 580087314 fits Yale and Hyster electric lift trucks including models MPW045-E, W40Z, W45Z, and MPW050-E.
Q: Can the YL 580087314 be used as a replacement charger?
A: Yes, the YL 580087314 can serve as a replacement charger for certain models when used with the appropriate backplate assembly. Verify your equipment has the required backplate before substituting.
Q: What is the charge profile of this charger?
A: The YL 580087314 features an automatic charge profile with float maintenance, ensuring optimal battery performance and longevity.
Q: What type of connector does this charger use?
A: The YL 580087314 uses O-Ring Lugs for secure and reliable connections.
