Yale 24V 20A Battery Charger YL 582010485
YL 582010485
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

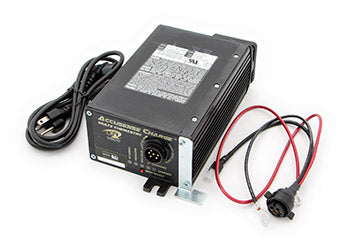

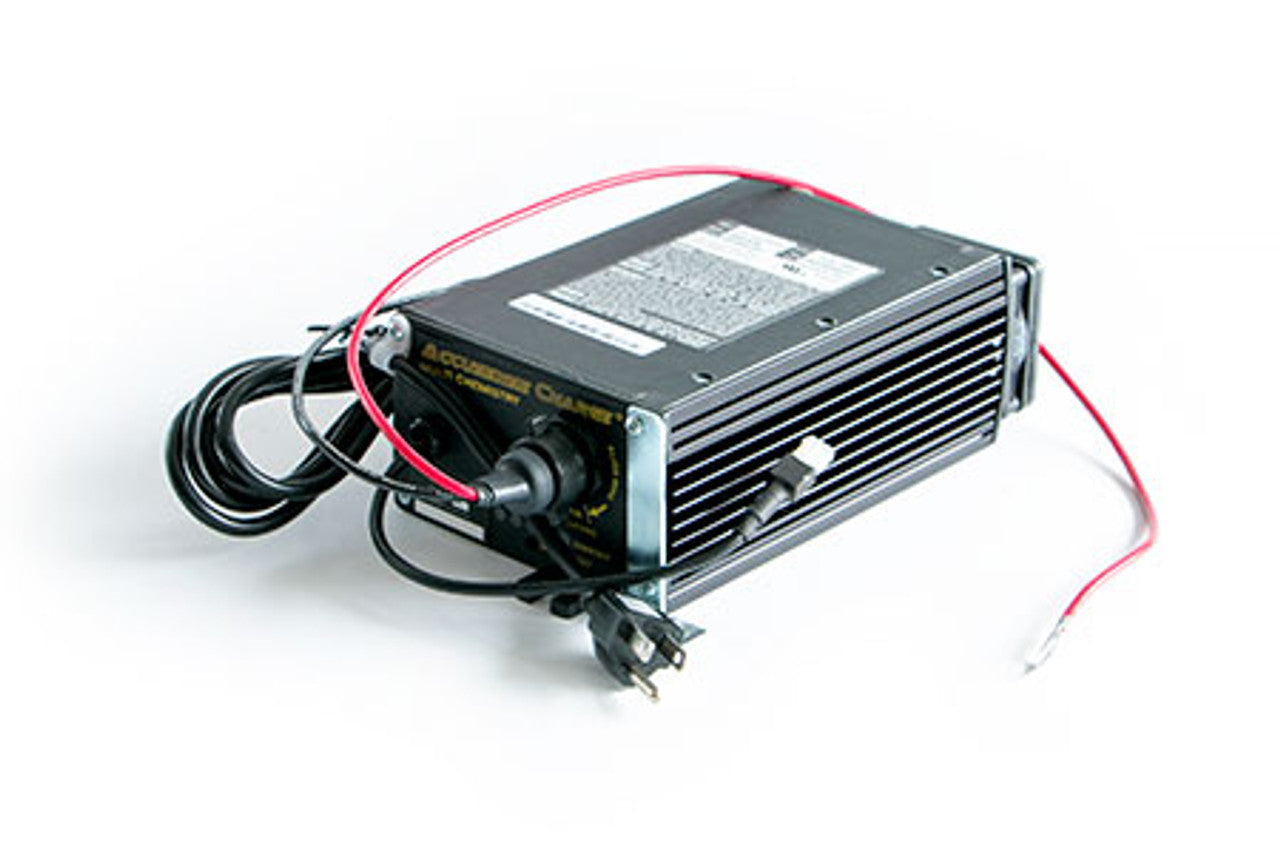

Yale battery charger YL 582010485, 24VDC 20A output, 120VAC input, engineered for Yale electric pallet trucks (MPB040E) built after 2009. Fully automatic multi-chemistry charger with float maintenance, reverse polarity protection, LED SOC display, and onboard mounting compatibility. Replaces YT 582010485 and Yale 1-24012-04 models.
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Model | MPB040E |
| Mounting Compatibility | Designed for onboard installation in Yale MPB040E trucks post-2009 |
| Part Number | YL 582010485 |
| Cross-Reference Part Numbers | Replaces YT 582010485, supersedes YT582010485 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 20 A |
| Charge Profile | multi-chemistry, float maintenance |
| Battery Chemistry | lead-acid, AGM, gel |
| Input Current | 4A at 120VAC |
Additional Specifications
| Additional Reference | Can replace Yale charger 1-24012-04 and 1-24020-04-hf on 9-inch MPB040E |
Frequently Asked Questions
Q: What is the output voltage and current rating of the YL 582010485?
A: The YL 582010485 provides a continuous current of 20A at 24VDC. It uses an input power of 120VAC, 60 Hz.
Q: Which Yale electric pallet trucks is the YL 582010485 designed for?
A: The YL 582010485 is designed for Yale MPB040E electric pallet trucks.
Q: What cross-reference part numbers does the YL 582010485 replace?
A: The YL 582010485 is a direct replacement for YT 582010485 and supersedes the earlier Yale 1-24012-04 charger models.
Q: What are the key features of the YL 582010485?
A: The YL 582010485 is a fully automatic multi-chemistry charger with float maintenance mode, reverse polarity protection, and an LED state-of-charge display. It is designed for direct onboard mounting on the truck.
Q: Can the YL 582010485 charge different types of batteries?
A: Yes. The YL 582010485 is a multi-chemistry charger and can safely charge various 24VDC battery chemistries, including lead-acid, AGM, and gel.
Q: What does float maintenance mode do on the YL 582010485?
A: Float maintenance mode keeps the battery charged at optimal levels without overcharging, which helps extend battery lifespan during periods of inactivity.
Q: Is the YL 582010485 easy to mount on my Yale MPB040E?
A: Yes. The YL 582010485 is designed for direct onboard mounting on Yale MPB040E trucks.
