Crown PTH50 Hydraulic Unit
  • CR 55001-010, Ball
    Up to $0.19 off
    2

    CR 55001-010

    $1.27
    $1.27 $1.46
  • CR 44521-012, Handle Assembly (Incl Item 1 - 17)
    Up to $41.43 off
    2

    CR 44521-012

    $100.73
    $100.73 $142.16
  • CR 44537, Roller Axle
    Up to $1.73 off
    3

    CR 44537

    $3.72
    $3.72 $5.45
  • CR 44519, Handle Axle
    Up to $4.59 off
    4

    CR 44519

    $13.71
    $13.71 $18.30
  • CR 55084-001, Bushing
    Up to $0.21 off
    4

    CR 55084-001

    $3.97
    $3.97 $4.18
  • CR 44536, Roller
    Up to $2.68 off
    5

    CR 44536

    $6.52
    $6.52 $9.20
  • CR 55084-003, Bushing
    Up to $1.36 off
    6

    CR 55084-003

    $2.71
    $2.71 $4.07
  • CR 44600, Lever Actuator
    Up to $5.12 off
    9

    CR 44600

    $12.63
    $12.63 $17.75
  • CR 55001-007, Ball
    Up to $1.05 off
    9

    CR 55001-007

    $0.52
    $0.52 $1.57
  • CR 44531, Barrel Nut
    Up to $1.09 off
    10

    CR 44531

    $2.23
    $2.23 $3.32
  • CR 41292, Spring
    Up to $0.46 off
    10

    CR 41292

    $1.47
    $1.47 $1.93
  • CR 44527, Control Rod
    Up to $2.86 off
    11

    CR 44527

    $10.19
    $10.19 $13.05
  • CR 79918, Spring
    Up to $0.44 off
    12

    CR 79918

    $1.47
    $1.47 $1.91
  • CR 44586, Insert
    Up to $1.87 off
    12

    CR 44586

    $7.49
    $7.49 $9.36
  • CR 44534, Link
    Up to $1.01 off
    14

    CR 44534

    $3.71
    $3.71 $4.72
  • CR 50005-002, Screw
    Up to $0.29 off
    17

    CR 50005-002

    $0.37
    $0.37 $0.66
  • CR 44533, Chain
    Up to $2.11 off
    15

    CR 44533

    $13.71
    $13.71 $15.82
  • CR 50000-012, Roll Pin
    Up to $0.22 off
    15

    CR 50000-012

    $0.39
    $0.39 $0.61
  • CR 44535, Chain Connector
    Up to $1.21 off
    16

    CR 44535

    $3.85
    $3.85 $5.06
  • CR 50000-070, Roll Pin
    Up to $0.25 off
    18

    CR 50000-070

    $0.45
    $0.45 $0.70
  • CR 44457, Pin
    Up to $4.66 off
    19

    CR 44457

    $16.37
    $16.37 $21.03
  • CR 44453, Piston Pump
    Up to $7.24 off
    21

    CR 44453

    $14.05
    $14.05 $21.29
  • CR 44709, Piston and Cylinder Assembly
    Up to $19.80 off
    21

    CR 44709

    $128.68
    $128.68 $148.48
  • CR 50012-033, Snap Ring
    Up to $0.27 off
    22

    CR 50012-033

    $1.08
    $1.08 $1.35
  • CR 44452, Washer
    Up to $0.42 off
    23

    CR 44452

    $2.72
    $2.72 $3.14
  • CR 44570, Spring
    Up to $5.06 off
    24

    CR 44570

    $2.15
    $2.15 $7.21
  • CR 54015-005, U-Cup
    Up to $2.35 off
    27

    CR 54015-005

    $6.35
    $6.35 $8.70
  • CR 44454, Pump Cylinder
    28

    CR 44454

    Call for Price
  • CR 50012-021, Snap Ring
    Up to $0.19 off
    29

    CR 50012-021

    $0.59
    $0.59 $0.78
  • CR 64074-005, Back-Up Ring
    Up to $0.26 off
    32

    CR 64074-005

    $1.20
    $1.20 $1.46
  • CR 54002-012, O-Ring
    Up to $1.39 off
    33

    CR 54002-012

    $3.27
    $3.27 $4.66
  • CR 41286, Tappet
    Up to $2.34 off
    34

    CR 41286

    $5.32
    $5.32 $7.66
  • CR 50011-010, Washer
    Up to $0.57 off
    35

    CR 50011-010

    $2.29
    $2.29 $2.86
  • CR 50012-026, Snap Ring
    Up to $0.19 off
    35

    CR 50012-026

    $1.04
    $1.04 $1.23
  • CR 41289, Ball Housing
    Up to $1.50 off
    36

    CR 41289

    $4.37
    $4.37 $5.87
  • CR 50000-039, Roll Pin
    Up to $0.20 off
    37

    CR 50000-039

    $1.23
    $1.23 $1.43
  • CR 55001-002, Ball
    Up to $1.54 off
    37

    CR 55001-002

    $0.88
    $0.88 $2.42
  • CR 44499, Steer Wheel Axle
    Up to $3.95 off
    38

    CR 44499

    $16.63
    $16.63 $20.58
  • CR 41288, Spring
    Up to $0.07 off
    38

    CR 41288

    $0.45
    $0.45 $0.52
  • CR 50011-020, Washer
    Up to $0.35 off
    39

    CR 50011-020

    $0.65
    $0.65 $1.00
  • CR 41301, Screw Plug
    Up to $1.63 off
    40

    CR 41301

    $4.79
    $4.79 $6.42
  • CR 44495-001-HD, Steer Wheel Assembly, Red Ultra Poly On Aluminum Hub W/ Bearings
    Up to $21.18 off
    40

    CR 44495-001-HD

    $51.37
    $51.37 $72.55
  • CR 44495-001-ST, Steer Wheel Assembly, Black Poly On Nylon Hub W/ Bearings
    Up to $13.62 off
    40

    CR 44495-001-ST

    $38.99
    $38.99 $52.61
  • CR 44495-002, Steer Wheel Assembly, Nylon W/ Bearings
    Up to $11.52 off
    40

    CR 44495-002

    $30.01
    $30.01 $41.53
  • CR 44495-003, Steer Wheel Assembly, Steel W/ Bearings
    Up to $23.02 off
    40

    CR 44495-003

    $46.96
    $46.96 $69.98
  • GWK-PTH50-CK, Complete Steering & Load Wheel Kit for Crown PTH50
    Up to $39.39 off
    40

    GWK-PTH50-CK

    $110.56
    $110.56 $149.95
  • CR 44437, Hub Cap (OEM Wheel Only)
    Up to $2.35 off
    42

    CR 44437

    $5.57
    $5.57 $7.92
  • CR 44437-1, Hub Cap (GPS Wheel Only)
    Up to $1.74 off
    42

    CR 44437-1

    $1.64
    $1.64 $3.38

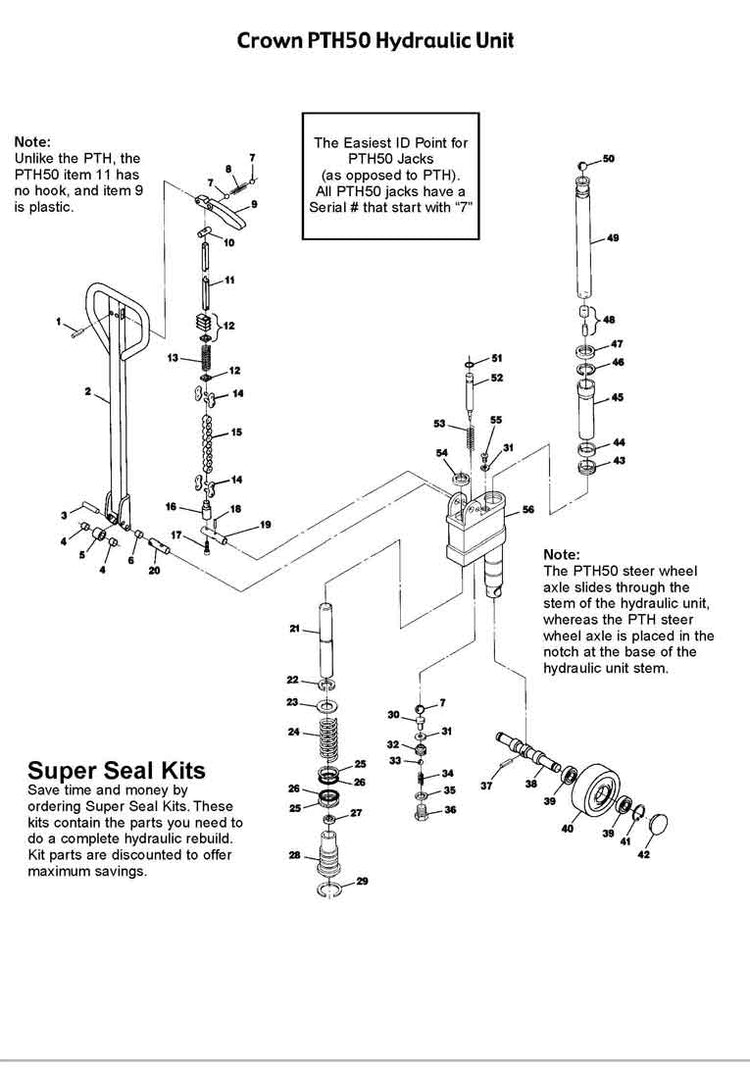

Using this diagram

The exploded view above shows the assembly. Each callout number matches a component in the listing below it — find your part on the drawing, then match the number to get the current part number and price.

If more than one seal is weeping, a seal kit is usually cheaper than buying the parts individually. If the number stamped on your unit does not match the drawing, call 1-800-669-7554 — we can identify it from a photograph.
