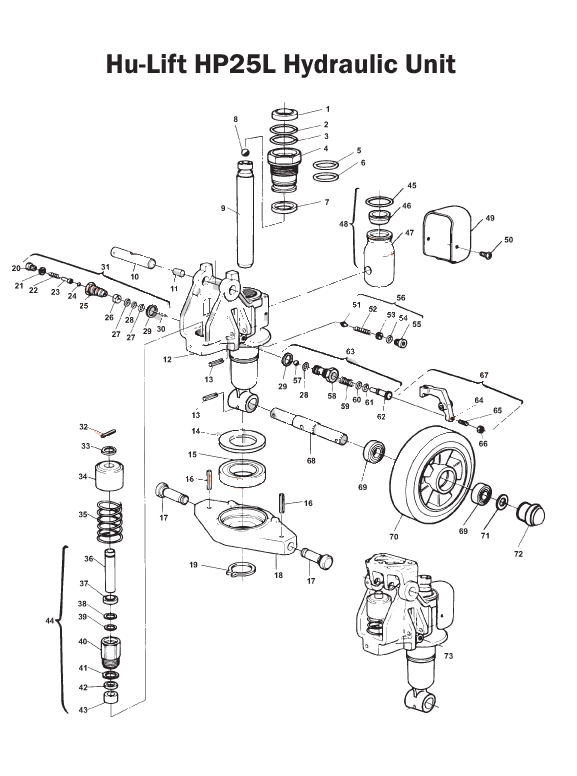

Hu-Lift HP25L Hydraulic Unit Parts Diagram
  • HL 156, Scraper
    Up to $1.52 off
    1

    HL 156

    $4.72
    $4.72 $6.24
  • HL 170, Retainer
    Up to $1.73 off
    2

    HL 170

    $3.72
    $3.72 $5.45
  • HL 157, O-Ring
    Up to $4.22 off
    3

    HL 157

    $4.25
    $4.25 $8.47
  • HL 157-1, O-Ring
    Up to $1.08 off
    5

    HL 157-1

    $2.03
    $2.03 $3.11
  • HL 158H, O-Ring
    Up to $1.08 off
    6

    HL 158H

    $2.03
    $2.03 $3.11
  • HL 160H, U-Cup
    Up to $1.83 off
    7

    HL 160H

    $12.88
    $12.88 $14.71
  • HL 101, Ball
    Up to $0.78 off
    8

    HL 101

    $5.08
    $5.08 $5.86
  • HL 102, Ram
    Up to $29.38 off
    9

    HL 102

    $36.40
    $36.40 $65.78
  • HL 109, Handle Pin
    Up to $2.32 off
    10

    HL 109

    $15.11
    $15.11 $17.43
  • HL 120, Bushing
    Up to $0.49 off
    11

    HL 120

    $2.77
    $2.77 $3.26
  • HL 121, Roll Pin
    Up to $0.22 off
    13

    HL 121

    $0.65
    $0.65 $0.87
  • HL 123, Dust Cover
    Up to $1.81 off
    14

    HL 123

    $6.44
    $6.44 $8.25
  • HL 124, Bearing
    Up to $4.24 off
    15

    HL 124

    $10.03
    $10.03 $14.27
  • HL 154, Roll Pin
    Up to $0.22 off
    16

    HL 154

    $0.45
    $0.45 $0.67
  • HL 155, Shoulder Bolt
    Up to $1.61 off
    17

    HL 155

    $10.51
    $10.51 $12.12
  • HL 153, Traverse
    Up to $15.50 off
    18

    HL 153

    $43.60
    $43.60 $59.10
  • Up to $19.01 off
    18

    HL 153-A

    $51.01
    $51.01 $70.02
  • HL 152, Snap Ring
    Up to $0.16 off
    19

    HL 152

    $1.04
    $1.04 $1.20
  • HL 110, Screw Plug
    Up to $1 off
    20

    HL 110

    $4.47
    $4.47 $5.47
  • HL 111, Washer
    Up to $0.45 off
    21

    HL 111

    $0.65
    $0.65 $1.10
  • HL 112, Spring
    Up to $0.50 off
    22

    HL 112

    $1.96
    $1.96 $2.46
  • HL 113, Spring Guide
    Up to $4.46 off
    23

    HL 113

    $22.16
    $22.16 $26.62
  • HL 114, Ball
    Up to $1.12 off
    24

    HL 114

    $1.07
    $1.07 $2.19
  • HL 115, Valve Body
    Up to $8.04 off
    25

    HL 115

    $19.27
    $19.27 $27.31
  • HL 116, Spring
    Up to $4.28 off
    26

    HL 116

    $12.00
    $12.00 $16.28
  • HL 166, Retainer
    Up to $1.34 off
    27

    HL 166

    $3.19
    $3.19 $4.53
  • HL 117, O-Ring
    Up to $0.67 off
    28

    HL 117

    $0.60
    $0.60 $1.27
  • HL 118, Washer
    Up to $0.96 off
    29

    HL 118

    $2.55
    $2.55 $3.51
  • HL 119, Valve Pin
    Up to $0.48 off
    30

    HL 119

    $1.32
    $1.32 $1.80
  • HL 115-A, Valve Assembly
    Up to $2 off
    31

    HL 115-A

    $97.84
    $97.84 $99.84
  • HL 142, Roll Pin
    Up to $0.39 off
    32

    HL 142

    $0.76
    $0.76 $1.15
  • HL 143, Retaining Cover
    Up to $2.51 off
    33

    HL 143

    $5.89
    $5.89 $8.40
  • HL 144, Spring Cap
    34

    HL 144

    $42.71
    $42.71 $33.71
  • HL 145, Spring
    Up to $3.41 off
    35

    HL 145

    $8.96
    $8.96 $12.37
  • HL 146, Piston
    Up to $6.11 off
    36

    HL 146

    $14.09
    $14.09 $20.20
  • HL 147, Scraper
    Up to $1.92 off
    37

    HL 147

    $2.72
    $2.72 $4.64
  • HL 168, Retainer
    Up to $1.08 off
    38

    HL 168

    $4.61
    $4.61 $5.69
  • HL 169, O-Ring
    Up to $1.25 off
    39

    HL 169

    $2.85
    $2.85 $4.10
  • HL 148, Pump Cylinder
    Up to $5.98 off
    40

    HL 148

    $14.80
    $14.80 $20.78
  • HL 149, U-Cup
    Up to $2.25 off
    41

    HL 149

    $6.32
    $6.32 $8.57
  • HL 150, Nylon Bushing
    42

    HL 150

    $5.70
    $5.70
  • HL 151, Washer
    Up to $1.32 off
    43

    HL 151

    $4.82
    $4.82 $6.14
  • HL 146-A, Pump Piston Assembly
    Up to $12.01 off
    44

    HL 146-A

    $78.08
    $78.08 $90.09
  • HL 161H, O-Ring
    Up to $1.68 off
    45

    HL 161H

    $4.25
    $4.25 $5.93
  • HL 162H, Filler Plug
    Up to $1.52 off
    46

    HL 162H

    $4.45
    $4.45 $5.97
  • HL 165H, Reservoir
    Up to $4.91 off
    47

    HL 165H

    $15.45
    $15.45 $20.36
  • HL 165H-A, Reservoir Assembly (Includes Items 45-47 & Pint of Oil)
    Up to $8.42 off
    48

    HL 165H-A

    $23.69
    $23.69 $32.11
  • HL 163H, Cowling
    Up to $3.15 off
    49

    HL 163H

    $7.53
    $7.53 $10.68
