Multiton TM55 Hydraulic Unit
  • MU 090179000, Ram
    2

    MU 090179000

    Call for Price
  • MU 200178500, Wiper Seal
    3

    MU 200178500

    $9.32
    $9.32 $7.86
  • MU 200178300, Snap Ring
    Up to $0.32 off
    4

    MU 200178300

    $0.76
    $0.76 $1.08
  • MU 090181000, Bell
    Up to $4.18 off
    5

    MU 090181000

    $25.48
    $25.48 $29.66
  • MU 200178370, Thrust Bearing
    Up to $2.50 off
    7

    MU 200178370

    $16.21
    $16.21 $18.71
  • MU 200179330, Bushing
    Up to $2.10 off
    8

    MU 200179330

    $4.45
    $4.45 $6.55
  • MU 090129000, Clip
    10

    MU 090129000

    $13.40
    $13.40 $11.52
  • MU 200178320, Snap Ring
    Up to $0.70 off
    11

    MU 200178320

    $1.48
    $1.48 $2.18
  • MU 063020008, Steer Wheel Axle
    Up to $6.21 off
    12

    MU 063020008

    $22.87
    $22.87 $29.08
  • MU 090187000, Multiton Steer Wheel Assembly for TM 55
    Up to $17.91 off
    13

    MU 090187000

    $38.32
    $38.32 $56.23
  • MU 820495000, Snap Ring
    Up to $0.19 off
    14

    MU 820495000

    $0.59
    $0.59 $0.78
  • MU 090189002-1, Steer Wheel Hub Cap (GPS Wheel Only)
    Up to $1.74 off
    15

    MU 090189002-1

    $1.64
    $1.64 $3.38
  • MU 200178560, O-Ring
    Up to $0.34 off
    16

    MU 200178560

    $0.83
    $0.83 $1.17
  • MU 200178550, O-Ring
    Up to $0.34 off
    17

    MU 200178550

    $0.83
    $0.83 $1.17
  • MU 090175001, Flow Valve Assembly
    18

    MU 090175001

    Call for Price
  • MU 200013620, Split Pin
    Up to $0.22 off
    19

    MU 200013620

    $0.45
    $0.45 $0.67
  • MU 090183000, Fluid Plug
    Up to $0.17 off
    20

    MU 090183000

    $8.53
    $8.53 $8.70
  • MU 090170000, Plunger
    22

    MU 090170000

    Call for Price
  • MU 090172000, Spring
    Up to $2.54 off
    23

    MU 090172000

    $0.73
    $0.73 $3.27
  • MU 090169000, Piston Valve Assembly
    Up to $20.24 off
    24

    MU 090169000

    $131.53
    $131.53 $151.77
  • MU 200059-550, O-Ring
    Up to $0.63 off
    25

    MU 200059-550

    $3.21
    $3.21 $3.84
  • MU 200178520, O-Ring
    Up to $0.10 off
    25

    MU 200178520

    $0.59
    $0.59 $0.69
  • MU 200178530, O-Ring
    Up to $0.10 off
    26

    MU 200178530

    $0.59
    $0.59 $0.69
  • MU 200178540, O-Ring
    Up to $0.32 off
    27

    MU 200178540

    $0.76
    $0.76 $1.08
  • MU 040725000, Spring
    Up to $4.28 off
    28

    MU 040725000

    $12.00
    $12.00 $16.28
  • MU 090127000, Handle Axle (18mm, Older Style)
    Up to $3.48 off
    30

    MU 090127000

    $7.43
    $7.43 $10.91
  • MU 090455000, Handle Axle (20mm, Newer Style)
    Up to $4.19 off
    30

    MU 090455000

    $8.91
    $8.91 $13.10
  • MU 820493000, Snap Ring
    Up to $0.08 off
    31

    MU 820493000

    $0.52
    $0.52 $0.60
  • MU 090166000, Piston
    Up to $5.98 off
    32

    MU 090166000

    $14.80
    $14.80 $20.78
  • MU 090196000, Piston Spring Cap
    33

    MU 090196000

    $42.71
    $42.71 $33.71
  • MU 090106000, Pump Cylinder
    Up to $5.98 off
    36

    MU 090106000

    $14.80
    $14.80 $20.78
  • MU 200059460, U-Cup
    Up to $2.25 off
    37

    MU 200059460

    $6.32
    $6.32 $8.57
  • MU 090184000, Traverse Assembly for Multiton TM 55
    9

    MU 090184000

    Call for Price
  • MU 090189002, Hub Cap for Multiton TM55
    15

    MU 090189002

    Call for Price
  • MU 039778000, Bushing
    Up to $2.68 off
    38

    MU 039778000

    $3.19
    $3.19 $5.87
  • MU 039777000, Washer
    Up to $1.32 off
    39

    MU 039777000

    $4.82
    $4.82 $6.14
  • MU 090167000, Raise/Lower Activator Assembly
    Up to $9.31 off
    40

    MU 090167000

    $26.64
    $26.64 $35.95
  • MU 080299000, Set Screw
    Up to $0.26 off
    41

    MU 080299000

    $0.33
    $0.33 $0.59
  • MU 090163021, Piston Assembly
    Up to $8.20 off
    42

    MU 090163021

    $53.25
    $53.25 $61.45
  • MU 200178280, Bushing
    Up to $0.49 off
    43

    MU 200178280

    $2.77
    $2.77 $3.26

Using this diagram

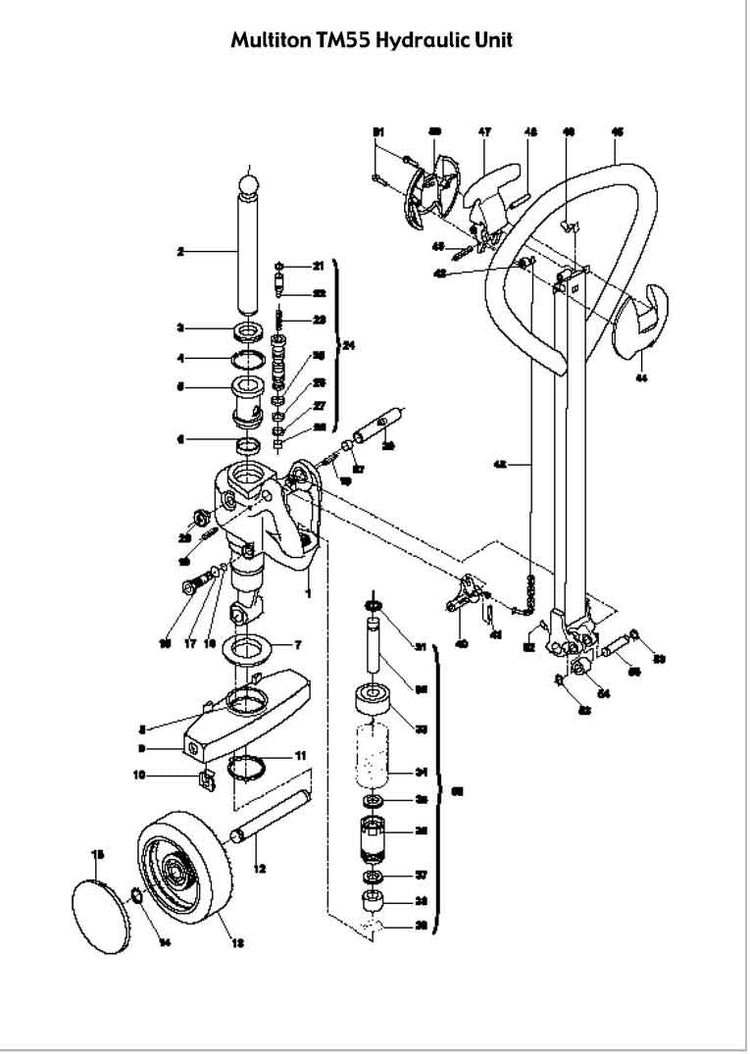

The exploded view above shows the assembly. Each callout number matches a component in the listing below it — find your part on the drawing, then match the number to get the current part number and price.

If more than one seal is weeping, a seal kit is usually cheaper than buying the parts individually. If the number stamped on your unit does not match the drawing, call 1-800-669-7554 — we can identify it from a photograph.
