Product Description

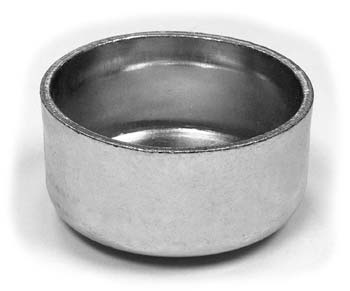

Multiton OEM piston spring cap (MU 090196000) for manual pallet jack TM 55 hydraulic unit, compatibility assured with Multiton TM 55 assemblies. Case hardened steel, designed for direct replacement at piston spring site; accepts OEM piston spring and seals. No documented cross-reference part numbers.
Compatibility: Fits pallet jacks made by Multiton, model TM 55. SKU: MU 090196000
Specifications
Dimensional
| Mounting Clearance | Minimum mounting clearance 0.003 inch to ensure press fit integrity |
Material & Construction
| Finish/Coating | OEM protective oil film, uncoated or lightly phosphate treated |
Part Numbers
| Manufacturer Part Number | MU 090196000 |
| OEM Part Number | 090196000 |
| Compatible Models | Multiton TM 55 hydraulic unit |
Frequently Asked Questions
Q: What is the MU 090196000 piston spring cap used for?
A: The MU 090196000 is a case hardened steel piston spring cap that mounts on the hydraulic unit of Multiton TM 55 manual pallet jacks. It secures and contains the piston spring and seals in the hydraulic assembly.
Q: Which Multiton pallet jacks use the MU 090196000 piston spring cap?
A: The MU 090196000 is designed for Multiton TM 55 series hydraulic units as a direct replacement component. Verify your jack model before ordering.
Q: What material is the MU 090196000 made from?
A: The MU 090196000 is manufactured from case hardened steel with an OEM protective oil film or light phosphate treatment to resist corrosion and wear in the hydraulic environment.
Q: What mounting clearance is required for the MU 090196000?
A: Maintain a minimum mounting clearance of 0.003 inch when installing the MU 090196000 to ensure proper press fit integrity and prevent seal leakage or hydraulic fluid loss.
Q: When should the MU 090196000 piston spring cap be replaced?
A: Replace the MU 090196000 if you observe hydraulic fluid leakage from the piston assembly, if the cap is visibly cracked or deformed, or if the jack loses lifting pressure. A failed cap allows internal seal degradation.
