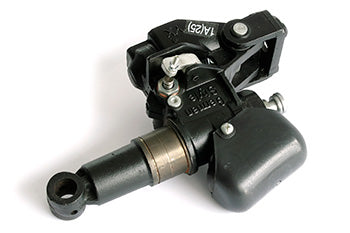

Hu-Lift Hydraulic Pump for HP25L Pallet Jacks
HL 100
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Hu-Lift HL 100 is a replacement hydraulic pump assembly designed for HP25L manual pallet jacks, compatible as a direct interchange with HL 100-AM and supporting critical lifting functions. Includes piston, reservoir, needle bearings, U-cup and O-ring seals, and mounts with a 10 mm pin system.
Compatibility: Fits pallet jacks made by Hu Lift, model HP25L. SKU: HL 100
Specifications
Hydraulic
| Pump Body Material | Cast steel with precision-machined sealing surfaces |
| Valve Assembly | Integral non-adjustable overflow and return valves |
| Fluid Reservoir Volume | Approximate 0.40 quart (0.38 liter) oil capacity |
| Hydraulic Port | Internal channel, non-threaded, no external ports |
Material & Construction
| Piston Assembly | Includes piston, needle bearings, U-cup seals, O-ring seals |
| Mounting System | 10 mm pin mounting system |
Part Numbers
| Part Number | HL 100 |
| Cross-Reference Part Numbers | Direct replacement for HL 100-AM |
| Manufacturer | Hu-Lift |
| Compatible Models | HP25L manual pallet jack |
Performance
| Service Factor | 1.0 (manual operation, continuous intermittent use) |
Frequently Asked Questions
Q: What does the HL 100 hydraulic pump assembly do?
A: The HL 100 is a complete hydraulic pump assembly that generates pressurized fluid flow to raise and lower loads on manual pallet jacks. It contains the pump body, piston, seals, bearings, and integrated valve system.
Q: Which pallet jack models is the HL 100 designed for?
A: The HL 100 is a direct replacement assembly for Hu-Lift HP25L manual pallet jacks and serves as a direct interchange with HL 100-AM assemblies, supporting the same lifting functions and mounting system.
Q: What internal components are included in the HL 100 pump assembly?
A: The HL 100 includes a piston, reservoir, needle bearings, U-cup seals, O-ring seals, and an integral valve assembly. The pump body is cast steel with machined sealing surfaces engineered for precision hydraulic operation.
Q: Is the HL 100 a direct replacement for the HL 100-AM?
A: Yes, the HL 100 is compatible as a direct interchange with HL 100-AM assemblies and uses the same 10 mm pin system for mounting on HP25L pallet jacks, ensuring proper fit and hydraulic performance.
Q: What material is used in the HL 100 pump body?
A: The HL 100 pump body is manufactured from cast steel with precision-machined sealing surfaces designed to maintain hydraulic pressure and resist wear from repeated piston cycles in manual pallet jack service.
Q: What seals does the HL 100 assembly use and why?
A: The HL 100 uses U-cup seals for piston sealing and O-ring seals for static connections. These seals prevent hydraulic fluid leakage and maintain system pressure during load raising and lowering operations.
Q: How should the HL 100 be stored when not in use?
A: Store the HL 100 pump assembly in a clean, dry location away from extreme temperatures. Keep it protected from moisture and contaminants to maintain seal integrity and hydraulic performance when reinstalled.
