Product Description

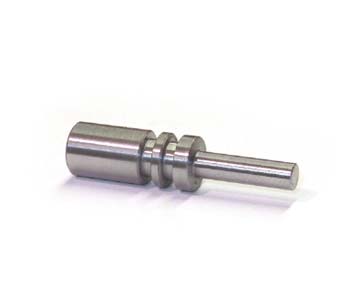

Lift-Rite LF 10260 Release Pin is a precision-machined carbon steel dowel for securing the hydraulic release mechanism in manual pallet jack control levers. Compatible primarily with Lift-Rite L-55 series hydraulic heads; pin diameter 0.25 inches, length 1.25 inches, chamfered ends, press-fit configuration, Rockwell hardness C35 minimum.
Compatibility: Fits pallet jacks made by Lift-Rite, model L-55. Alternate model: L55; L 55. SKU: LF 10260
Specifications
Dimensional
| Mounting Requirement | Press-fit into lever assembly; does not require threaded fastener |
Material
| Base Material | Carbon steel |
| Hardness | Rockwell C35 minimum |
Part Numbers
| OEM Part Number | LF 10260 |
| Application | Compatible with Lift-Rite L-55 series manual pallet jack hydraulic units |
Frequently Asked Questions
Q: What is the LF 10260 and what is its function?
A: The LF 10260 is a precision-machined carbon steel release pin that secures the hydraulic release mechanism in the control lever of manual pallet jacks. It is a dowel-type pin that holds the release lever assembly in proper mechanical alignment with the hydraulic piston system.
Q: What are the physical dimensions and specifications of the LF 10260?
A: The LF 10260 has a diameter of 0.25 inches and a length of 1.25 inches. The pin features chamfered ends for smooth insertion and operates in a press-fit configuration requiring no threaded fastener. Material is carbon steel with a minimum Rockwell hardness rating of C35.
Q: Which Lift-Rite models does the LF 10260 fit?
A: The LF 10260 is designed for Lift-Rite L-55 series hydraulic heads and manual pallet jack control levers (also referenced as L55 or L 55). Do not assume compatibility with L-50, L-60, or other Lift-Rite series without consulting the parts manual for your specific model.
Q: Why is the LF 10260 press-fit and not threaded?
A: The press-fit design eliminates the need for a fastener and creates a permanent, vibration-resistant connection in the lever assembly. This design reduces assembly complexity and ensures the pin remains secure during repeated lever actuation and load cycling.
Q: What failure symptoms indicate the LF 10260 release pin is damaged?
A: Signs of pin failure include visible bending or deformation, the release lever rotating or moving excessively side-to-side, inability to actuate the release mechanism smoothly, or audible clicking or play in the control lever assembly. A bent pin must be replaced to restore lever function.
Q: What is the service life of the LF 10260 release pin?
A: The LF 10260 carbon steel pin is designed for long-term service life in normal material handling environments. Failure is typically caused by impact damage, excessive bending load, or corrosion rather than wear. Inspect for bending or rust during preventive maintenance and replace if deformation is detected.
