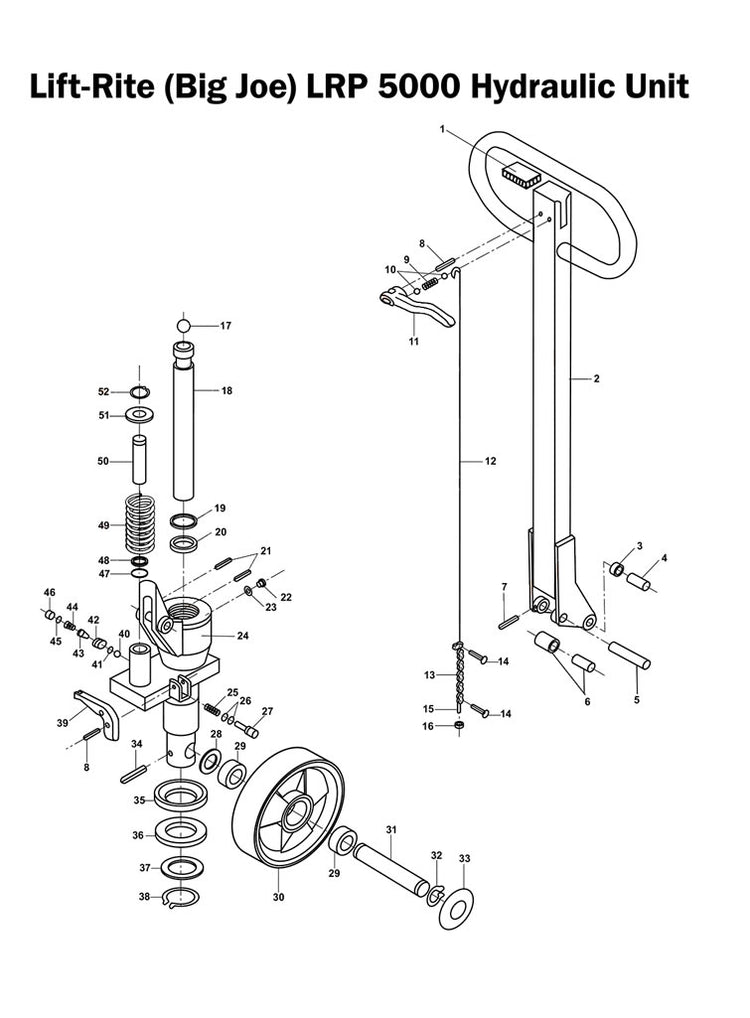

Lift-Rite LRP5000 Hydraulic Unit Diagram
  • GWK-LRP-CK, Complete Wheel Kit, Model LRP 5000, (2) Load Roller Assy, (2) Steer Wheel Assy, W/ Bearings, Axles and Fasteners
    Up to $40.35 off

    GWK-LRP-CK

    $106.05
    $106.05 $146.40
  • LF PL20274E, Handle Cap
    Up to $1.99 off
    1

    LF PL20274E

    $2.96
    $2.96 $4.95
  • LF 10237, Snap Ring
    Up to $0.39 off
    2

    LF 10237

    $1.63
    $1.63 $2.02
  • LF PL20276, Handle Assembly ( Incl. Items 1-16)
    Up to $58.42 off
    2

    LF PL20276

    $379.73
    $379.73 $438.15
  • LF PL20306, Bushing
    Up to $0.80 off
    3

    LF PL20306

    $3.55
    $3.55 $4.35
  • LF 10239, Washer
    Up to $0.19 off
    4

    LF 10239

    $1.24
    $1.24 $1.43
  • LF PL20275, Handle Pin
    Up to $4.27 off
    4

    LF PL20275

    $3.35
    $3.35 $7.62
  • LF 10240-E, Steer Wheel Axle, 25mm OD
    Up to $4.63 off
    5

    LF 10240-E

    $16.23
    $16.23 $20.86
  • LF PL20274P, Pin
    Up to $0.40 off
    5

    LF PL20274P

    $3.09
    $3.09 $3.49
  • LF 10236-C, Hub Cap
    Up to $1.29 off
    6

    LF 10236-C

    $7.48
    $7.48 $8.77
  • LF PL20274RA, Roller Complete with Bushing
    Up to $3.08 off
    6

    LF PL20274RA

    $10.20
    $10.20 $13.28
  • LF PL20274RB, Split Pin
    Up to $0.12 off
    7

    LF PL20274RB

    $0.45
    $0.45 $0.57
  • LF 10250, Pump Piston Assembly
    7

    LF 10250

    Call for Price
  • LF PL10269, Split Pin
    Up to $0.23 off
    8

    LF PL10269

    $0.60
    $0.60 $0.83
  • LF 10251, Scraper
    Up to $1.88 off
    9

    LF 10251

    $1.48
    $1.48 $3.36
  • LF PL20274C, Spring
    Up to $1.04 off
    9

    LF PL20274C

    $2.23
    $2.23 $3.27
  • LF 10252, U-Cup
    Up to $2.87 off
    10

    LF 10252

    $13.99
    $13.99 $16.86
  • LF 10254, Ball
    Up to $0.87 off
    10

    LF 10254

    $0.83
    $0.83 $1.70
  • LF PL10254, Ball
    Up to $0.87 off
    10

    LF PL10254

    $0.83
    $0.83 $1.70
  • LF PL20274BD, Control Lever
    Up to $3.95 off
    11

    LF PL20274BD

    $52.60
    $52.60 $56.55
  • LF PL20274A, Control Rod
    Up to $6.28 off
    12

    LF PL20274A

    $13.36
    $13.36 $19.64
  • LF 10266, Screw Plug
    Up to $2.39 off
    13

    LF 10266

    $3.72
    $3.72 $6.11
  • LF PL20272, Chain
    Up to $2 off
    13

    LF PL20272

    $8.91
    $8.91 $10.91
  • LF PL10273, Pin
    Up to $1 off
    14

    LF PL10273

    $0.65
    $0.65 $1.65
  • LF 10265, O-Ring
    Up to $0.34 off
    14

    LF 10265

    $0.83
    $0.83 $1.17
  • LF PL10270, Lower Control Rod
    Up to $3.48 off
    15

    LF PL10270

    $7.43
    $7.43 $10.91
  • LF 10264, Spring
    Up to $0.54 off
    15

    LF 10264

    $1.11
    $1.11 $1.65
  • LF 10256, O-Ring
    Up to $1.02 off
    19

    LF 10256

    $0.33
    $0.33 $1.35
  • LF 10246, U-Cup
    Up to $2.91 off
    20

    LF 10246

    $13.75
    $13.75 $16.66
  • LF 20249, Top Seal
    Up to $5.55 off
    19

    LF 20249

    $10.60
    $10.60 $16.15
  • LF 10261-A, Ball
    Up to $0.09 off
    20

    LF 10261-A

    $0.37
    $0.37 $0.46
  • LF 20274S, Split Pin
    Up to $0.26 off
    21

    LF 20274S

    $0.29
    $0.29 $0.55
  • LF 10267, Filler Plug
    Up to $0.32 off
    22

    LF 10267

    $0.76
    $0.76 $1.08
  • LF 10259, O-Ring
    Up to $0.34 off
    23

    LF 10259

    $0.83
    $0.83 $1.17
  • LF 10258, Spring
    Up to $0.75 off
    25

    LF 10258

    $4.36
    $4.36 $5.11
  • LF 10260, Release Pin
    Up to $4.19 off
    27

    LF 10260

    $8.91
    $8.91 $13.10
  • LF 10238-D, Ball Bearing
    Up to $0.55 off
    29

    LF 10238-D

    $2.06
    $2.06 $2.61
  • LF 20236-B-A-HD, Steer Wheel Assembly, Red Ultra Poly On Aluminum Hub W/ Bearings
    30

    LF 20236-B-A-HD

    Call for Price
  • LF 20236-B-A-ST, Steer Wheel Assy - 25mm Bearing ID Tread: Poly, Hub: Nylon
    Up to $15.98 off
    30

    LF 20236-B-A-ST

    $46.73
    $46.73 $62.71
  • LF 20236N, Steer Wheel Assembly for Lift-Rite (Big Joe) L-55, LRP 5000, L50, L146
    Up to $12.22 off
    30

    LF 20236N

    $29.09
    $29.09 $41.31
  • LF 20236S, Steer Wheel Assy, Steel W/ Bearings
    Up to $11.91 off
    30

    LF 20236S

    $77.37
    $77.37 $89.28
  • LF 10242, Roll Pin
    Up to $0.08 off
    34

    LF 10242

    $0.43
    $0.43 $0.51
  • LF 10233, Spacer
    Up to $6.86 off
    35

    LF 10233

    $44.56
    $44.56 $51.42
  • LF 10234, Thrust Bearing
    Up to $2.50 off
    36

    LF 10234

    $16.21
    $16.21 $18.71
  • LF 10234-A, Washer
    Up to $1.73 off
    37

    LF 10234-A

    $3.72
    $3.72 $5.45
  • LF 10235, Snap Ring
    Up to $0.41 off
    38

    LF 10235

    $0.92
    $0.92 $1.33
  • LF 10268, Release Lever
    Up to $5.75 off
    39

    LF 10268

    $21.67
    $21.67 $27.42
  • LF 20243, Ram Piston for Lift-Rite L-55
    18

    LF 20243

    Call for Price
