Product Description

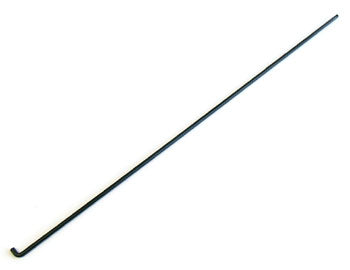

Control rod assembly designed for Lift-Rite LRP-5000 and PST-5000 manual pallet jack handle mechanisms. Connects operator control lever to hydraulic valve system for lift, neutral, and lower functions. Compatible with chain-driven control systems requiring adjustment for proper neutral positioning.
Compatibility: Fits pallet jacks made by Lift-Rite, model LRP 5000. SKU: LF PL20274A
Specifications
Part Numbers
| OEM Part Number | PL20274A |
| Compatible Equipment Models | Lift-Rite LRP-5000, PST-5000 hand pallet trucks |
| Assembly Position | Item 7 in handle assembly diagram |
Frequently Asked Questions
Q: Which Lift-Rite models use the LF PL20274A control rod assembly?
A: The LF PL20274A control rod assembly is designed for Lift-Rite LRP-5000 and PST-5000 manual pallet jacks. It serves as the mechanical linkage in the handle assembly that coordinates the lift and lower functions.
Q: What does the control rod assembly do in a pallet jack?
A: This assembly connects the operator control lever to the hydraulic valve system. It translates hand-operated movements into precise valve spool actuation, enabling lift, neutral, and lower operations. Proper positioning of this assembly is critical for responsive control.
Q: What material is the LF PL20274A made from and how durable is it?
A: The control rod is fabricated from hardened steel bar stock with precision machining. Steel provides rigidity to prevent flexing and maintains consistent engagement with the valve mechanism across thousands of operational cycles.
Q: What symptoms indicate that the LF PL20274A needs replacement?
A: Replace the control rod assembly if the handle becomes difficult to move, if control response is inconsistent, if there is visible bending or cracking in the rod, or if the pallet jack cannot achieve full lift or lower function. Wear in the connection points may also create excessive play in the handle.
