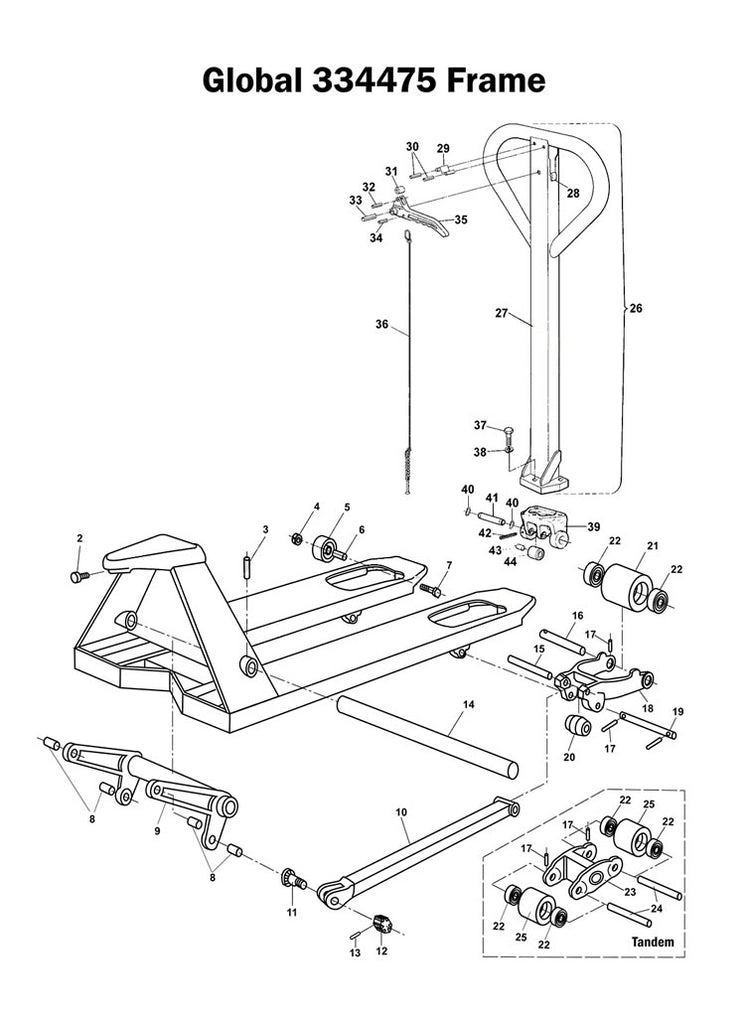

Global 334475 Frame Unit Diagram
  • HL F1511B, Load Roller Assembly (Single) Black Ultra Poly on Steel
    Up to $17.79 off

    HL F1511B

    $26.60
    $26.60 $44.39
  • HL F103, Hex Socket Screw
    Up to $0.47 off
    2

    HL F103

    $1.84
    $1.84 $2.31
  • HL F1502, Roll Pin
    Up to $0.09 off
    3

    HL F1502

    $0.31
    $0.31 $0.40
  • HL F106, Nut
    Up to $0.13 off
    4

    HL F106

    $0.44
    $0.44 $0.57
  • HL F108, Entry Roller
    Up to $4.45 off
    5

    HL F108

    $3.64
    $3.64 $8.09
  • HL F109, Sleeve
    Up to $1.66 off
    6

    HL F109

    $3.95
    $3.95 $5.61
  • HL F111, Bolt
    Up to $0.22 off
    7

    HL F111

    $0.89
    $0.89 $1.11
  • HL F102, Bushing
    Up to $0.53 off
    8

    HL F102

    $2.28
    $2.28 $2.81
  • HL F126, Eccentric Pin
    Up to $1.70 off
    11

    HL F126

    $10.92
    $10.92 $12.62
  • HL F123, Nut
    Up to $0.32 off
    12

    HL F123

    $0.76
    $0.76 $1.08
  • HL F124, Split Pin
    Up to $0.40 off
    13

    HL F124

    $2.63
    $2.63 $3.03
  • HL F1516, Shaft
    Up to $3.72 off
    15

    HL F1516

    $11.07
    $11.07 $14.79
  • HL F1515, Load Wheel Axle
    Up to $3.21 off
    16

    HL F1515

    $7.97
    $7.97 $11.18
  • HL F112, Roll Pin
    Up to $0.26 off
    17

    HL F112

    $0.29
    $0.29 $0.55
  • HL F1514, Load Wheel Bracket
    Up to $7.80 off
    18

    HL F1514

    $50.65
    $50.65 $58.45
  • HL F1512, Pivot Axle
    Up to $3.48 off
    19

    HL F1512

    $7.43
    $7.43 $10.91
  • HL F115, Bearing
    Up to $0.38 off
    22

    HL F115

    $1.73
    $1.73 $2.11
  • HL H101-A, Handle Assembly (Includes Items 27 through 36)
    Up to $16.89 off
    26

    HL H101-A

    $61.45
    $61.45 $78.34
  • HL H108, Rubber Cushion
    Up to $1.13 off
    28

    HL H108

    $4.03
    $4.03 $5.16
  • HL H103-A, Blade Spring
    Up to $0.92 off
    29

    HL H103-A

    $3.55
    $3.55 $4.47
  • HL H104, Roll Pin (Newer Version)
    Up to $0.26 off
    30

    HL H104

    $0.29
    $0.29 $0.55
  • HL H111, Nylon Roller
    Up to $0.74 off
    31

    HL H111

    $1.80
    $1.80 $2.54
  • HL H105, Roll Pin (Newer Version)
    Up to $0.17 off
    32

    HL H105

    $0.40
    $0.40 $0.57
  • HL H102, Roll Pin
    Up to $0.22 off
    33

    HL H102

    $0.45
    $0.45 $0.67
  • HL H112, Roll Pin
    Up to $0.62 off
    34

    HL H112

    $0.55
    $0.55 $1.17
  • HL H106, Control Lever
    Up to $11.78 off
    35

    HL H106

    $33.47
    $33.47 $45.25
  • HL H107, Rod and Chain
    Up to $3.80 off
    36

    HL H107

    $24.72
    $24.72 $28.52
  • HL H109, Handle Bolt
    Up to $0.20 off
    37

    HL H109

    $1.35
    $1.35 $1.55
  • HL H110, Lock Washer
    Up to $0.18 off
    38

    HL H110

    $0.37
    $0.37 $0.55
  • HL 103, Handle Bracket
    Up to $11.72 off
    39

    HL 103

    $46.77
    $46.77 $58.49
  • HL 108, Snap Ring
    Up to $0.79 off
    40

    HL 108

    $0.31
    $0.31 $1.10
  • HL 107, Hu-Lift HP25L Pallet Jack Shaft
    Up to $1.86 off
    41

    HL 107

    $12.12
    $12.12 $13.98
  • HL 106, Roll Pin
    Up to $0.30 off
    42

    HL 106

    $0.72
    $0.72 $1.02
  • HL 105, Bushing
    Up to $0.32 off
    43

    HL 105

    $2.00
    $2.00 $2.32
  • HL 104, Steel Roller
    Up to $4.10 off
    44

    HL 104

    $7.36
    $7.36 $11.46

Using this diagram

The exploded view above shows the assembly. Each callout number matches a component in the listing below it — find your part on the drawing, then match the number to get the current part number and price.

If more than one seal is weeping, a seal kit is usually cheaper than buying the parts individually. If the number stamped on your unit does not match the drawing, call 1-800-669-7554 — we can identify it from a photograph.
