Hu-Lift HP25L Pallet Jack Sleeve Oe
HL F109
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

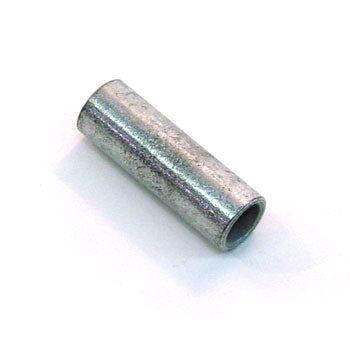

OE replacement sleeve for Hu-Lift manual pallet jack, model HP25L, precision-machined steel for linkage assembly. Direct fit and performance as per manufacturer specification. Compatible only with HP25L series. No known cross-reference or superseding part numbers.
Compatibility: Fits pallet jacks made by Hu-Lift, model HP25L. SKU: HL F109
Specifications
Dimensional
| Mounting Clearance | Clearance per HP25L OEM design (refer to OE mounting drawing) |
Material
| Steel Grade | SAE 1045, normalized |
| Finish/Coating | Machined surface, light oil protective |
Part Numbers
| OEM Part Number | HL F109 |
| Manufacturer Part Number | F109 |
| Compatible Models | Hu-Lift HP25L manual pallet jack |
Frequently Asked Questions
Q: What is the HL F109 sleeve?
A: The HL F109 is an OEM replacement sleeve for Hu-Lift HP25L manual pallet jacks. It is a precision-machined steel component used in the linkage assembly and manufactured to direct fit OEM specification.
Q: Which equipment models are compatible with the HL F109?
A: The HL F109 is compatible only with Hu-Lift HP25L manual pallet jacks. It is a direct fit replacement for the linkage sleeve on this model.
Q: What are the material specifications for the HL F109?
A: The HL F109 is manufactured from SAE 1045 normalized steel. It features a machined surface finish with light oil protective coating to prevent corrosion.
Q: What function does the HL F109 sleeve perform?
A: The HL F109 is a precision sleeve component in the linkage assembly. It provides bearing surface and mounting clearance control as specified in the HP25L OEM design.
Q: Can the HL F109 be used on other pallet jack models?
A: No. The HL F109 is engineered specifically for the Hu-Lift HP25L manual pallet jack. Verify your equipment model and refer to the OEM mounting drawing to confirm compatibility.
Q: Are there cross-reference part numbers for the HL F109?
A: No known cross-reference or superseding part numbers have been identified for the HL F109. It is the genuine OEM replacement sleeve for Hu-Lift HP25L manual pallet jacks.
