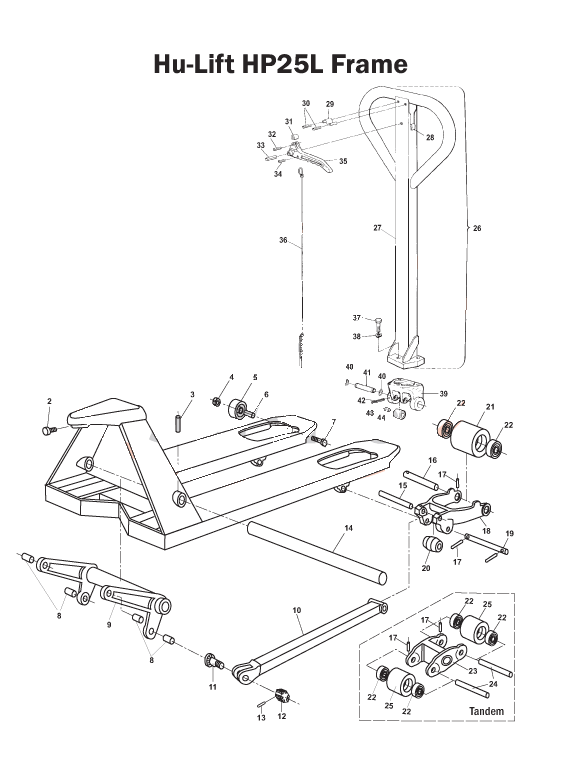

Hu-Lift HP25L Frame Parts Unit Diagram
  • HL F103, Hex Socket Screw
    Up to $0.47 off
    2

    HL F103

    $1.84
    $1.84 $2.31
  • HL F104, Roll Pin
    Up to $0.08 off
    3

    HL F104

    $0.43
    $0.43 $0.51
  • HL F106, Nut
    Up to $0.13 off
    4

    HL F106

    $0.44
    $0.44 $0.57
  • HL F108, Entry Roller
    Up to $4.45 off
    5

    HL F108

    $3.64
    $3.64 $8.09
  • HL F109, Sleeve
    Up to $1.66 off
    6

    HL F109

    $3.95
    $3.95 $5.61
  • HL F111, Bolt
    Up to $0.22 off
    7

    HL F111

    $0.89
    $0.89 $1.11
  • HL F102, Bushing
    Up to $0.53 off
    8

    HL F102

    $2.28
    $2.28 $2.81
  • HL HSP-22, Load roller assembly 3'' dia x 2'' width
    Up to $8.70 off
    9

    HL HSP-22

    $23.73
    $23.73 $32.43
  • HL F125
    Up to $17.22 off
    10

    HL F125

    $71.15
    $71.15 $88.37
  • HL F126, Eccentric Pin
    Up to $1.70 off
    11

    HL F126

    $10.92
    $10.92 $12.62
  • HL F123, Nut
    Up to $0.32 off
    12

    HL F123

    $0.76
    $0.76 $1.08
  • HL F124, Split Pin
    Up to $0.40 off
    13

    HL F124

    $2.63
    $2.63 $3.03
  • HL F105, Lifting Link Shaft
    14

    HL F105

    Call for Price
  • HL F122, Push Rod Axle
    Up to $3.72 off
    15

    HL F122

    $11.07
    $11.07 $14.79
  • HL F121, Load Wheel Axle
    Up to $4.29 off
    16

    HL F121

    $5.96
    $5.96 $10.25
  • HL F112, Roll Pin
    Up to $0.26 off
    17

    HL F112

    $0.29
    $0.29 $0.55
  • HL F120, Load Roller Bracket (Single)
    Up to $6.01 off
    18

    HL F120

    $34.16
    $34.16 $40.17
  • HL F118, Axle
    Up to $3.48 off
    19

    HL F118

    $7.43
    $7.43 $10.91
  • HL F119, Roller
    Up to $2.44 off
    20

    HL F119

    $6.00
    $6.00 $8.44
  • HL F117A-A
    Up to $8.74 off
    21

    HL F117A-A

    $21.40
    $21.40 $30.14
  • HL F115, Bearing
    Up to $0.38 off
    22

    HL F115

    $1.73
    $1.73 $2.11
  • HL F113, Load Roller Bracket (Tandem)
    Up to $10.44 off
    23

    HL F113

    $22.28
    $22.28 $32.72
  • HL F114, Load Roller Axle
    Up to $3.19 off
    24

    HL F114

    $7.32
    $7.32 $10.51
  • HL F116B-A, Load Roller Assy - 2.9 Dia. Tread: Heavy-Duty Poly, Hub: Steel
    Up to $13.60 off
    25

    HL F116B-A

    $25.24
    $25.24 $38.84
  • HL H101-A, Handle Assembly (Includes Items 27 through 36)
    Up to $16.89 off
    26

    HL H101-A

    $61.45
    $61.45 $78.34
  • HL H108, Rubber Cushion
    Up to $1.13 off
    28

    HL H108

    $4.03
    $4.03 $5.16
  • HL H103, Handle Spring (Newer Version)
    Up to $0.92 off
    29

    HL H103

    $3.55
    $3.55 $4.47
  • HL H104, Roll Pin (Newer Version)
    Up to $0.26 off
    30

    HL H104

    $0.29
    $0.29 $0.55
  • HL H111, Nylon Roller
    Up to $0.74 off
    31

    HL H111

    $1.80
    $1.80 $2.54
  • HL H105, Roll Pin (Newer Version)
    Up to $0.17 off
    32

    HL H105

    $0.40
    $0.40 $0.57
  • HL H102, Roll Pin
    Up to $0.22 off
    33

    HL H102

    $0.45
    $0.45 $0.67
  • HL H112, Roll Pin
    Up to $0.62 off
    34

    HL H112

    $0.55
    $0.55 $1.17
  • HL H106, Control Lever
    Up to $11.78 off
    35

    HL H106

    $33.47
    $33.47 $45.25
  • HL H107, Rod and Chain
    Up to $3.80 off
    36

    HL H107

    $24.72
    $24.72 $28.52
  • HL H109, Handle Bolt
    Up to $0.20 off
    37

    HL H109

    $1.35
    $1.35 $1.55
  • HL H110, Lock Washer
    Up to $0.18 off
    38

    HL H110

    $0.37
    $0.37 $0.55
  • HL 103-A, Bracket Assy
    Up to $11.72 off
    39

    HL 103-A

    $46.77
    $46.77 $58.49
  • HL 107
    Up to $1.86 off
    41

    HL 107

    $12.12
    $12.12 $13.98
  • HL 108, Snap Ring
    Up to $0.79 off
    40

    HL 108

    $0.31
    $0.31 $1.10
  • HL 106, Roll Pin
    Up to $0.30 off
    42

    HL 106

    $0.72
    $0.72 $1.02
  • HL 105, Bushing
    Up to $0.32 off
    43

    HL 105

    $2.00
    $2.00 $2.32
  • HL 104, Steel Roller
    Up to $4.10 off
    44

    HL 104

    $7.36
    $7.36 $11.46
